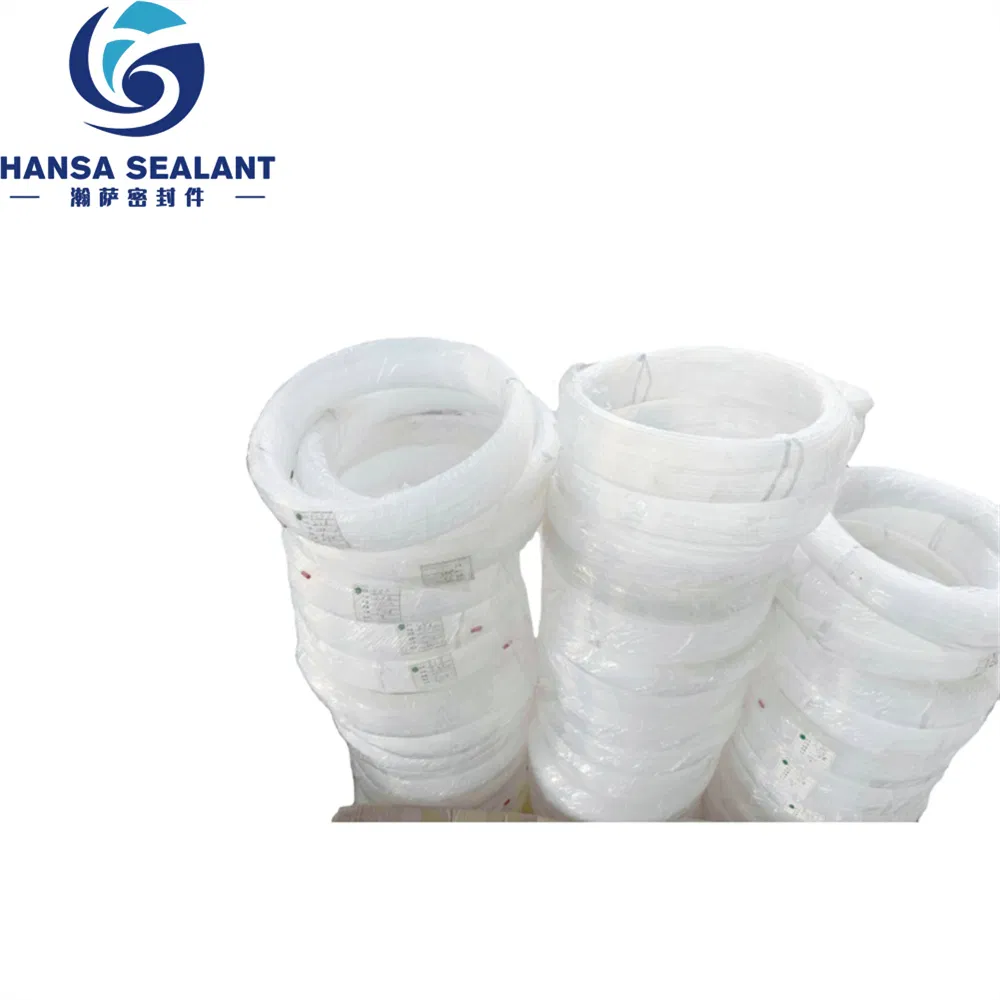

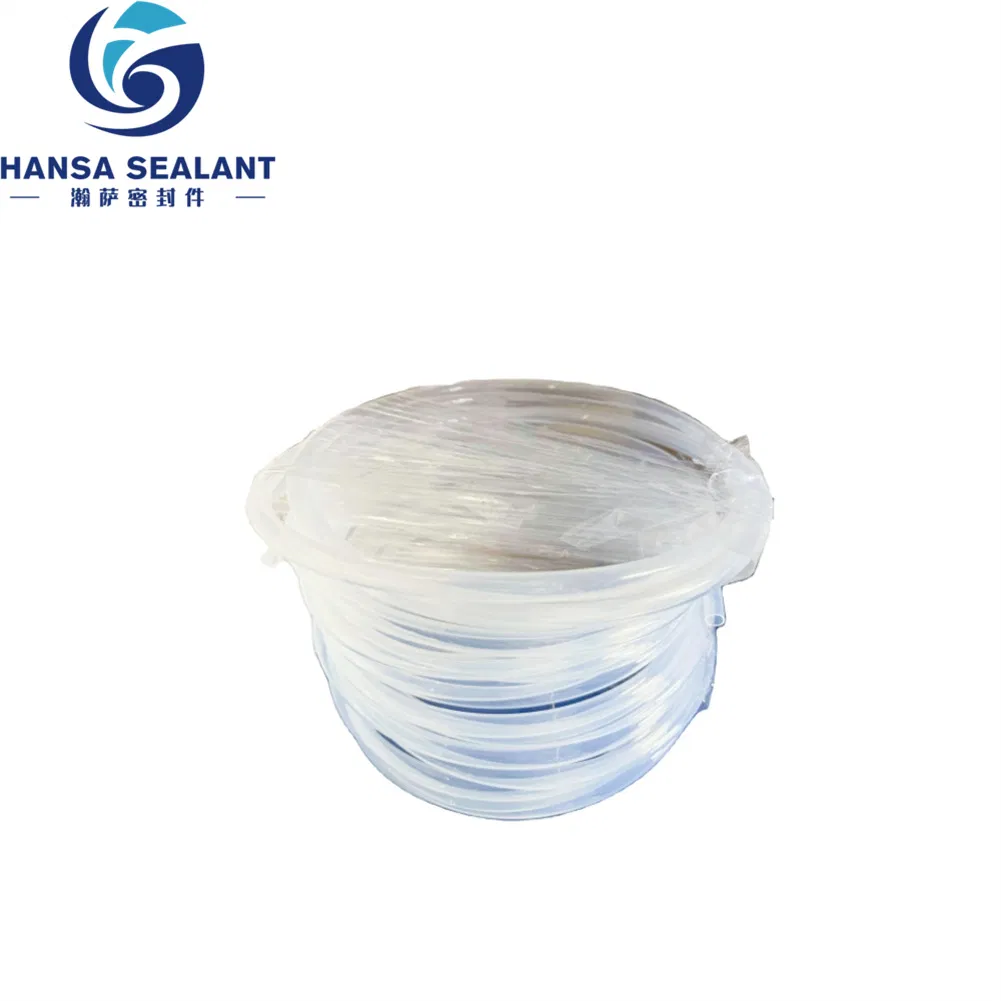

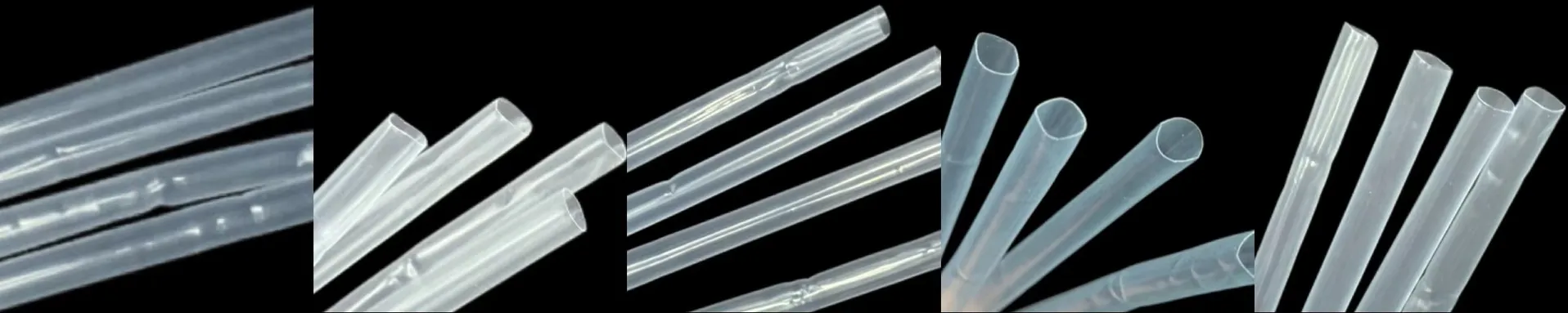

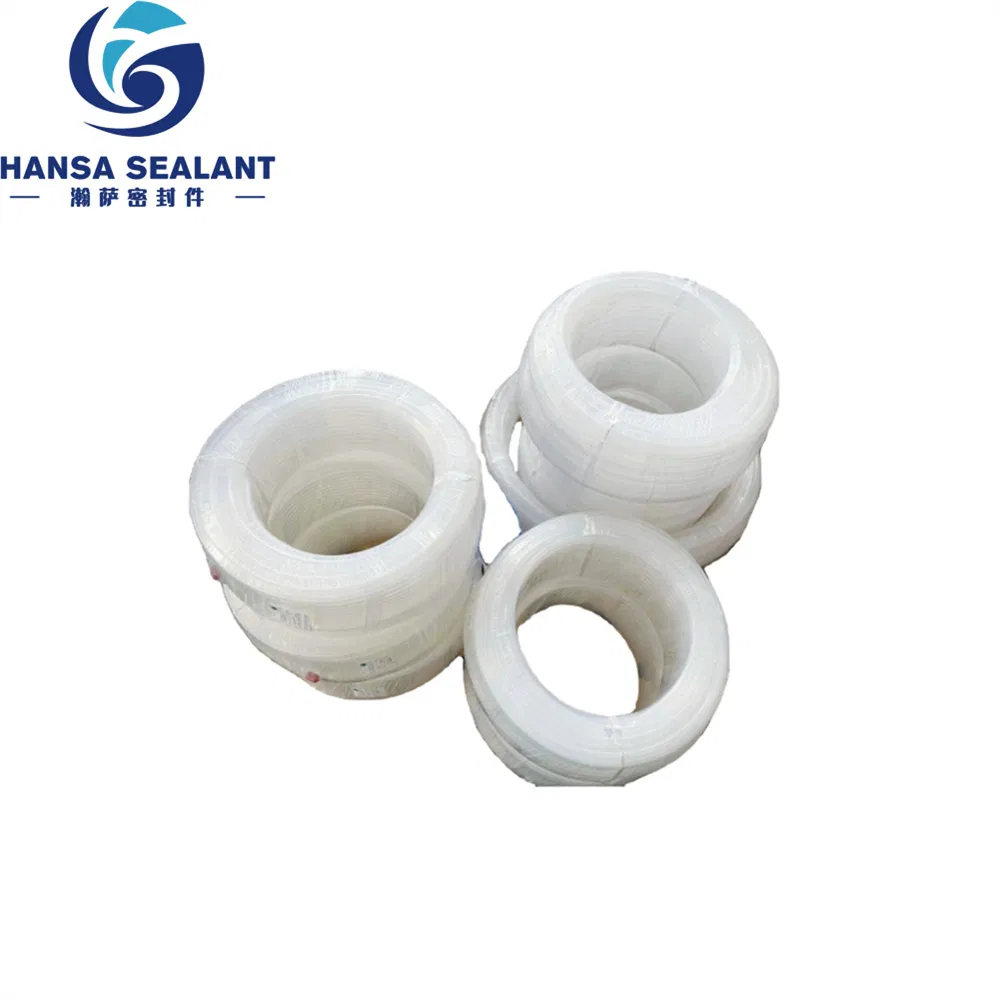

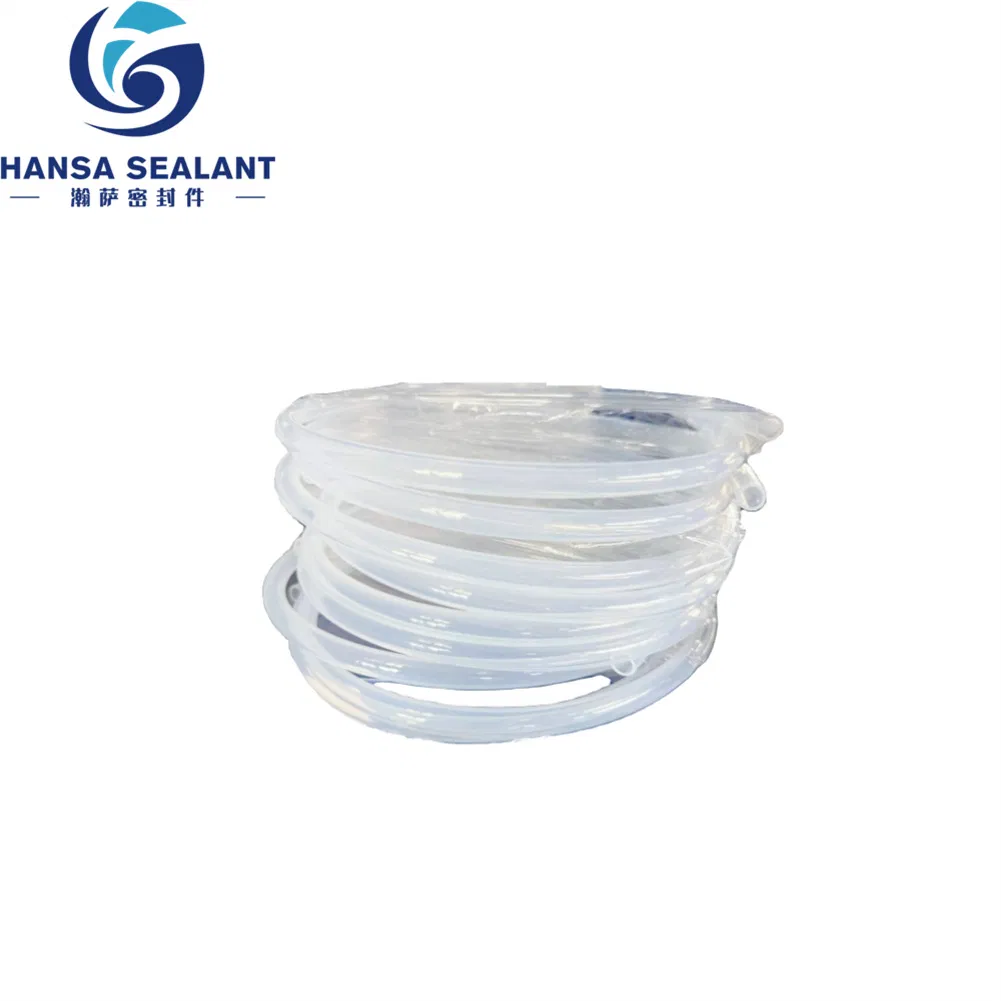

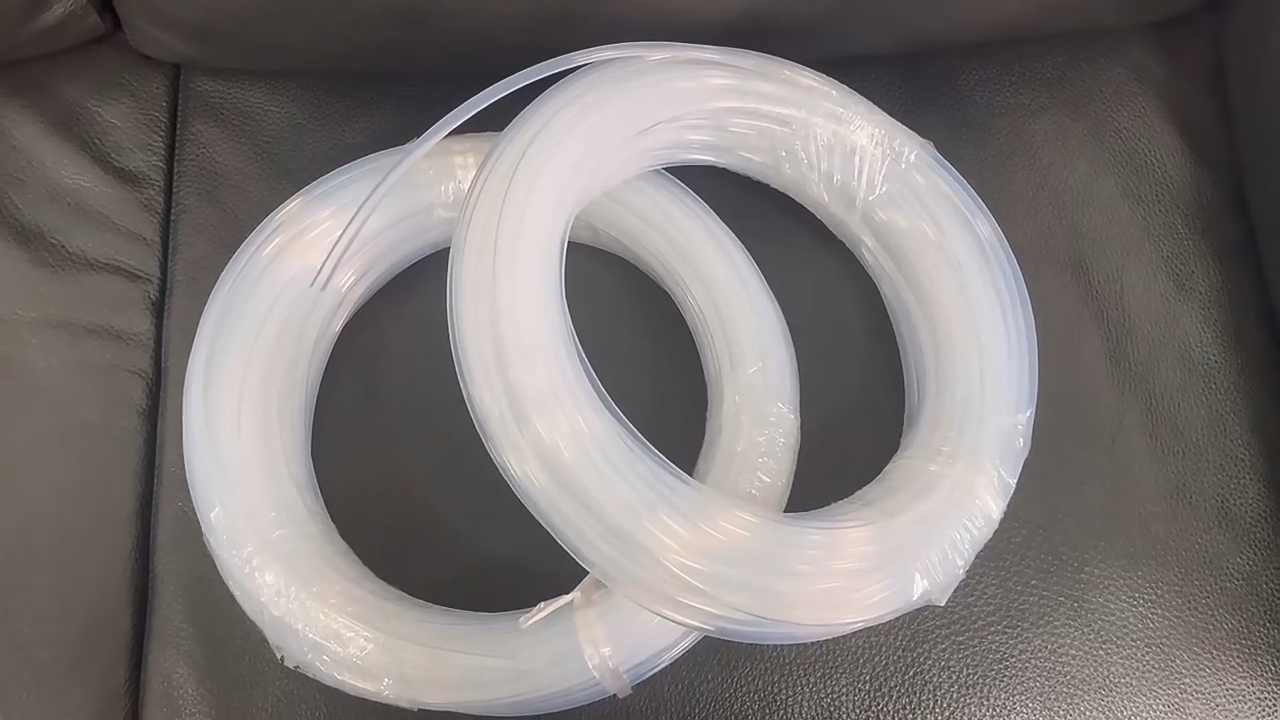

Versatile Tep Tubing Solutions for Efficient Fluid Transfer Needs

Customization: Available
Material: FEP
Kind: Other Type

Product Description

i

Basic Information

Model NO.
FEP Tube
Water Absorption
<0.1%
Contraction Percentage
1.0%~2.5%
Tensile Strength
14MPa
Type
PTFE Tubing
Certification
RoHS, Reach
Length
Customized
Application
Plastic Tubing
Customized Service
Available
Transport Package
Wooden Box
HS Code
391721000
Production Capacity
30tons/Month
📦

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 50.00cm
Package Gross Weight
20.000kg
📋

Material Specifications

Properties Unit Typical Values
Material Properties Specific gravity g/cm³ 2.14-2.17
Melting point 288
Working temperature -80 to +200
Absorption rate % <0.01
Thermal expansion rate 8-11
Mechanical Properties Tensile strength Mpa 14
Elongation at break % 160
Rigidity SH R45
Coefficient of kinetic friction - 0.06-0.11
Electrical Properties Volume resistivity ΩM 1*1018
📏

Dimensions & Sizes

Code 3*2 4*2.5 6*4 8*5 1/8*1/16 1/4*1/8 3/8*1/4
OD (mm) φ3.0 φ4.0 φ6.6 φ8.0 φ1/8" φ1/4" φ3/8"
ID (mm) φ2.0 φ2.5 φ4.0 φ5.0 φ1/16" φ1/8" φ1/4"
💡

Product Description

Product Introduction:
High-performance FEP fluoropolymer (PTFE-modified) stands out with exceptional -200°C to 200°C thermal stability, plus top-tier chemical resistance, ultra-smooth non-stick surface, low friction and easy processability. Ideal for electronics, chemical, medical, aerospace fields. Custom pellets, sheets, tubes & films available. Strict quality control ensures reliable performance for global applications.
?

Frequently Asked Questions

What are your terms of packing?
Generally, we use carbon boxes with wooden boxes outside, to ensure our products have been safely delivered.
How about customized service?
The demand for product customization is available. Our customized service can provide unique and personalized plastic parts based on your requirements.
What is FEP and what are its main properties?
FEP (Fluorinated Ethylene Propylene) is a melt-processable fluoropolymer. It offers excellent chemical resistance, high electrical insulation, low friction coefficient, good transparency and high thermal stability.

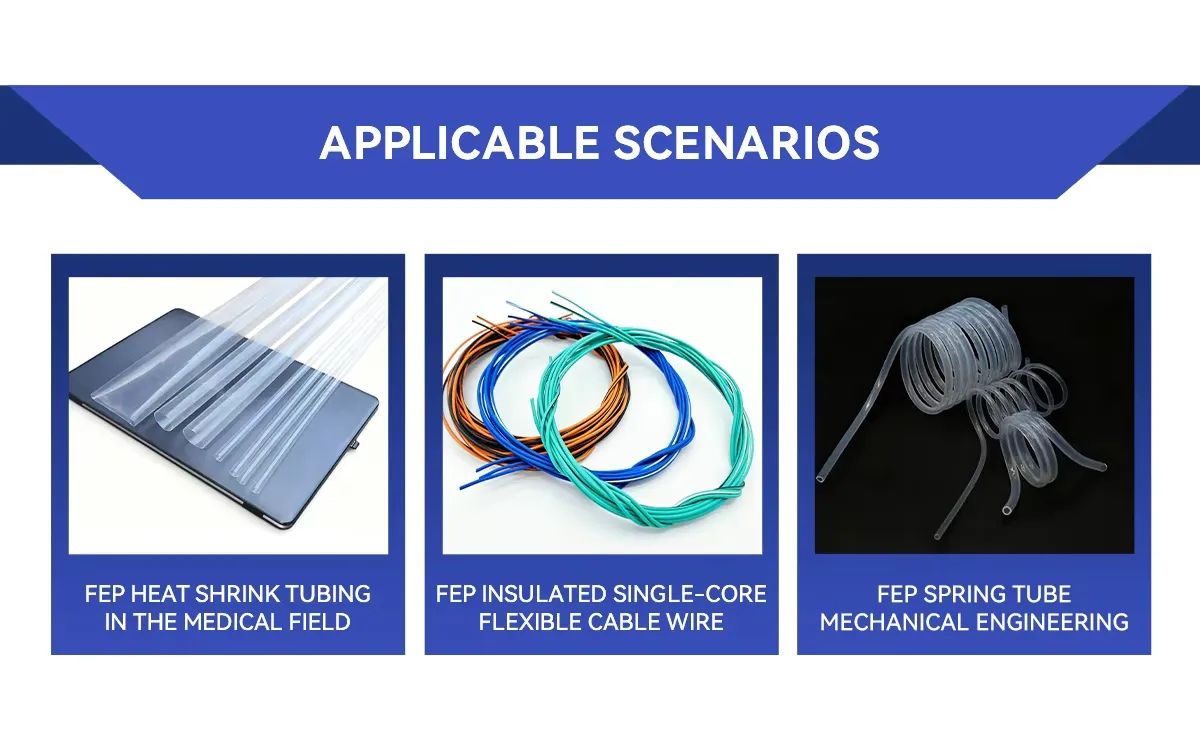

What are the typical applications of FEP products?
FEP is widely used in high-purity tubes, wire insulation, tank linings, non-stick coatings, semiconductor components and medical devices.
What is the main difference between FEP, PFA and PTFE?
PTFE has the best overall performance but is hard to process. FEP is more cost-effective than PFA and is processable by injection or extrusion. PFA has higher temperature resistance and better flex life than FEP.
What is the continuous operating temperature of FEP?
FEP can be used continuously at temperatures up to 200°C, with short-term heat resistance up to approximately 220°C.
