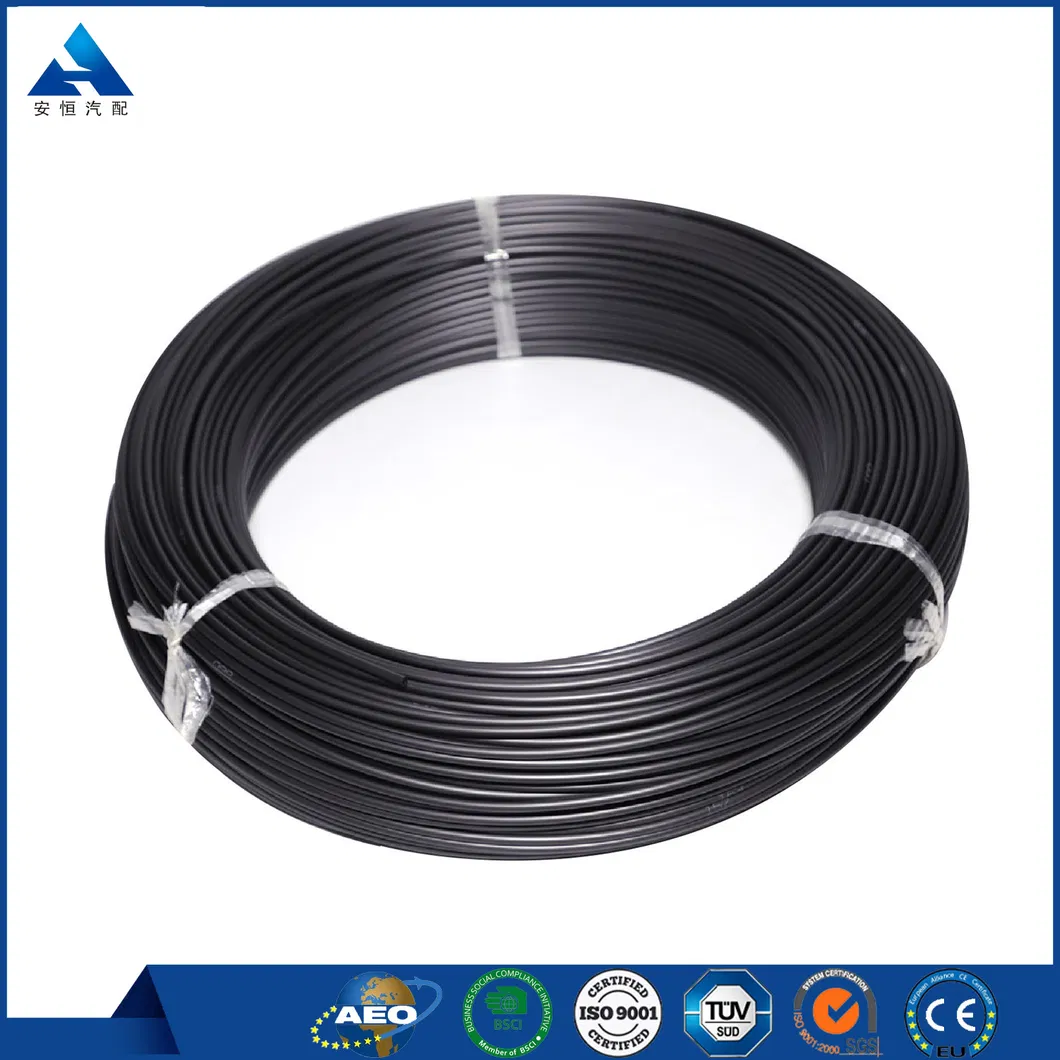

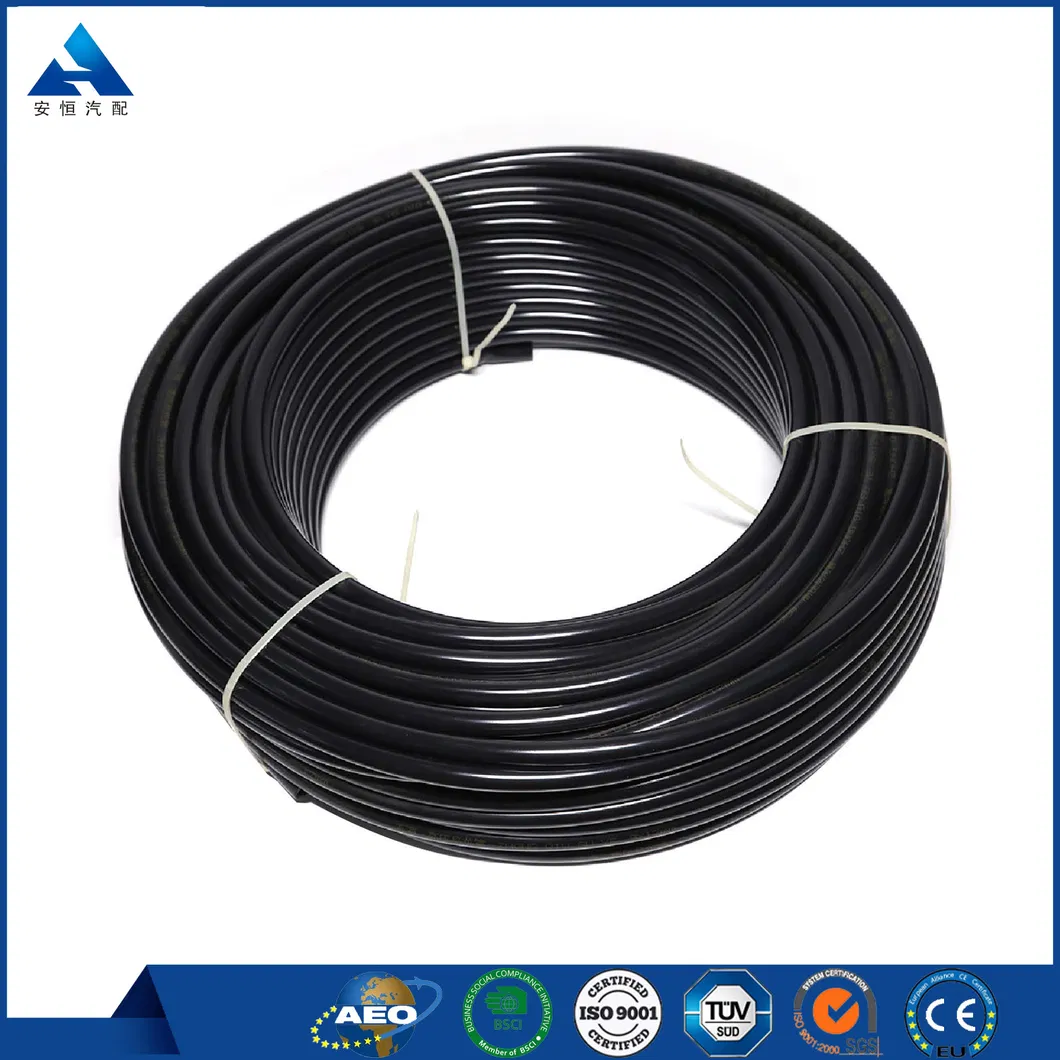

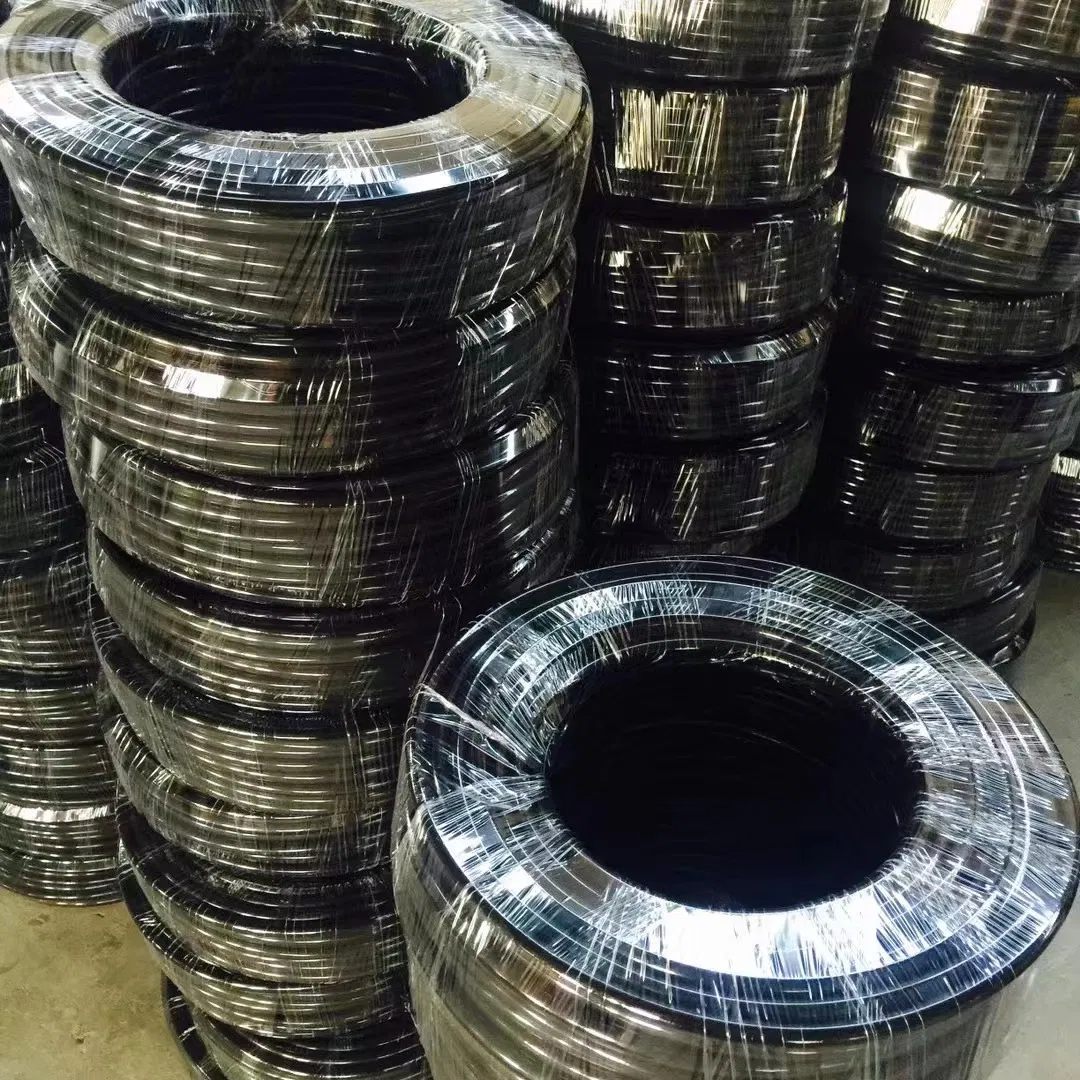

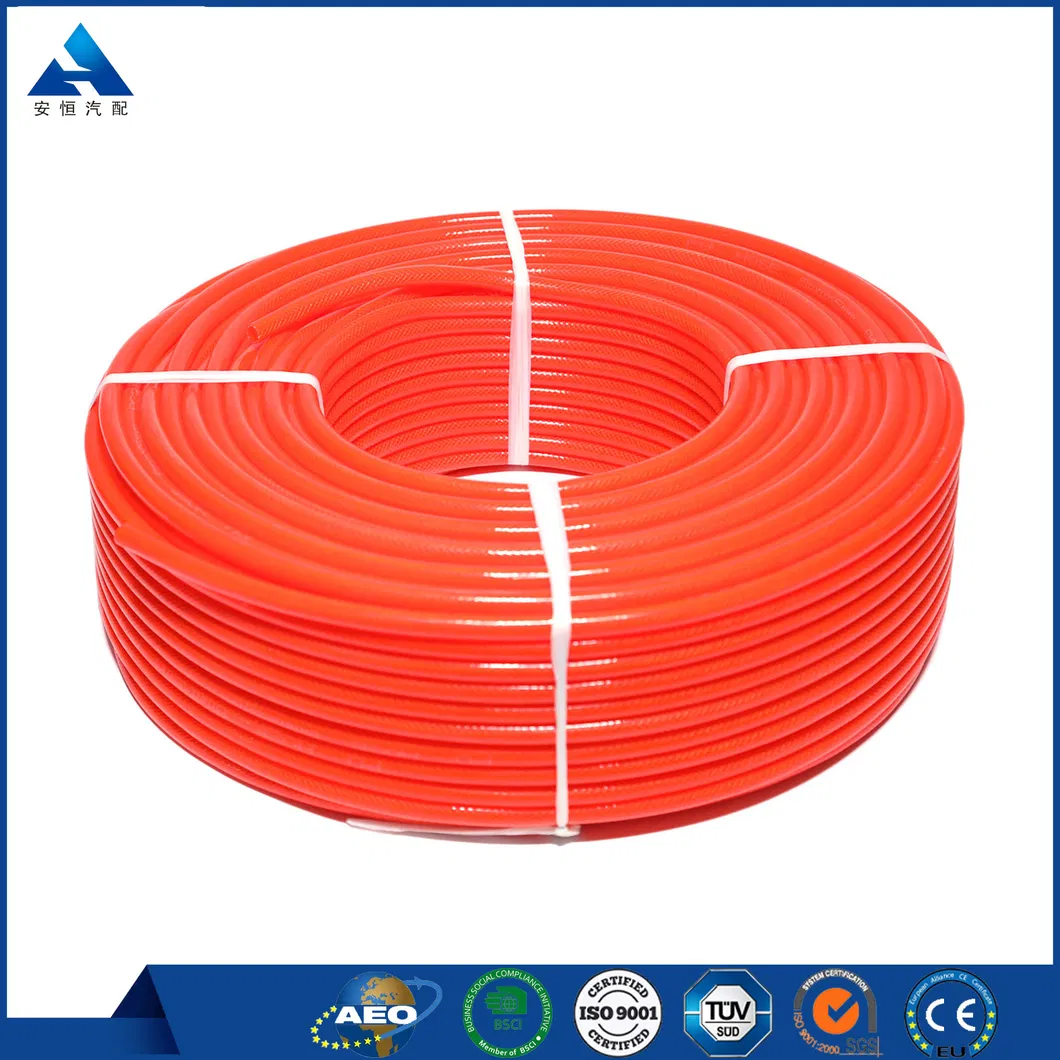

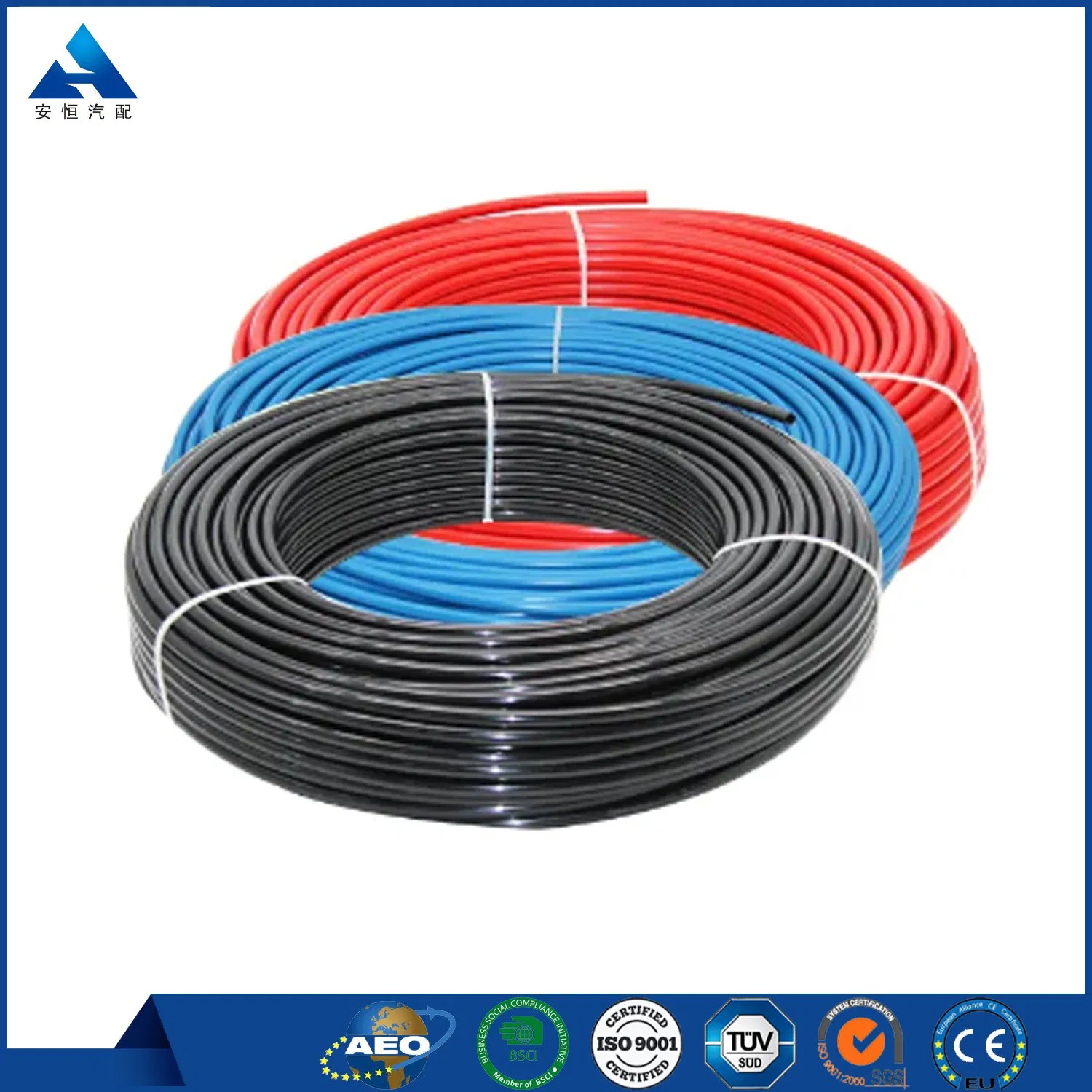

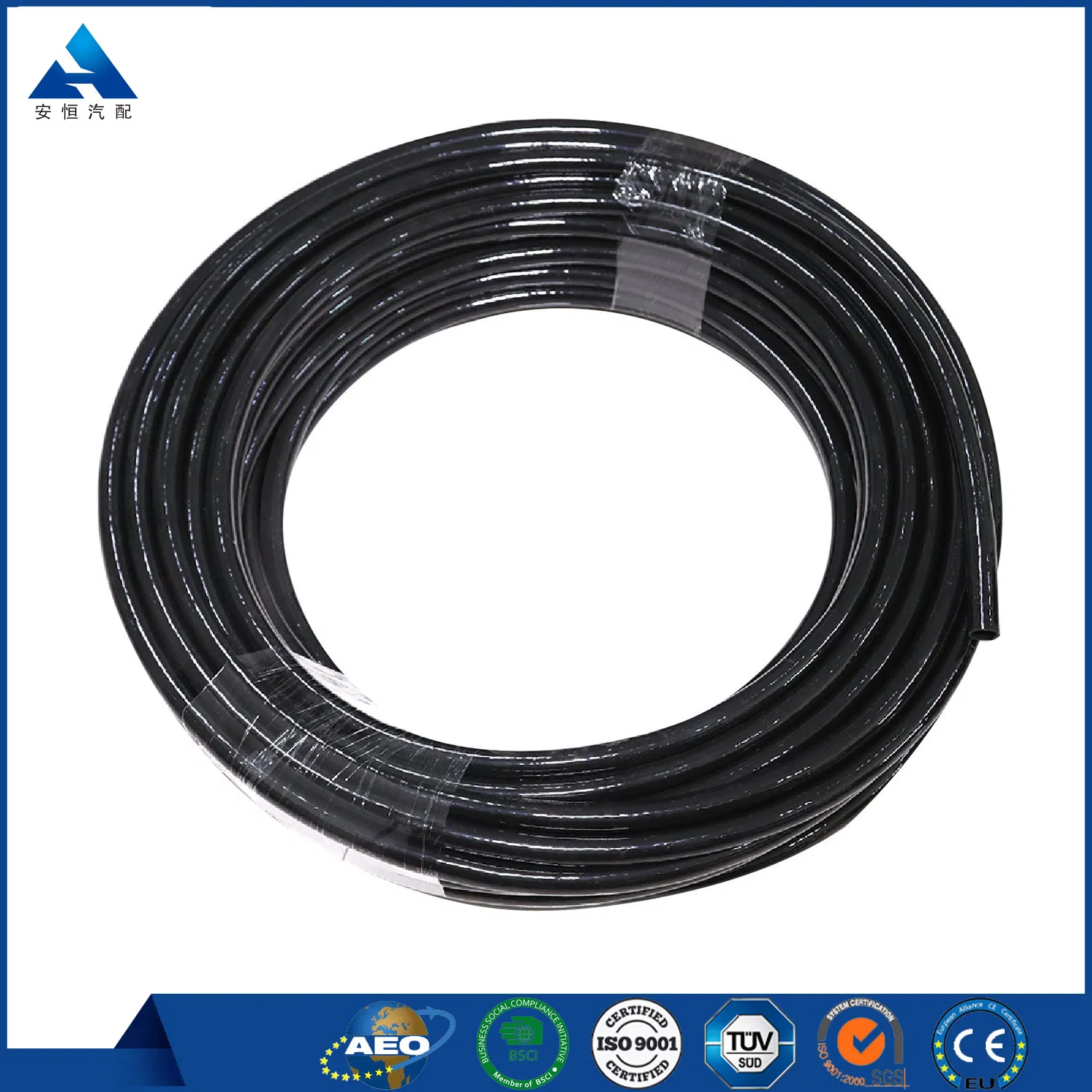

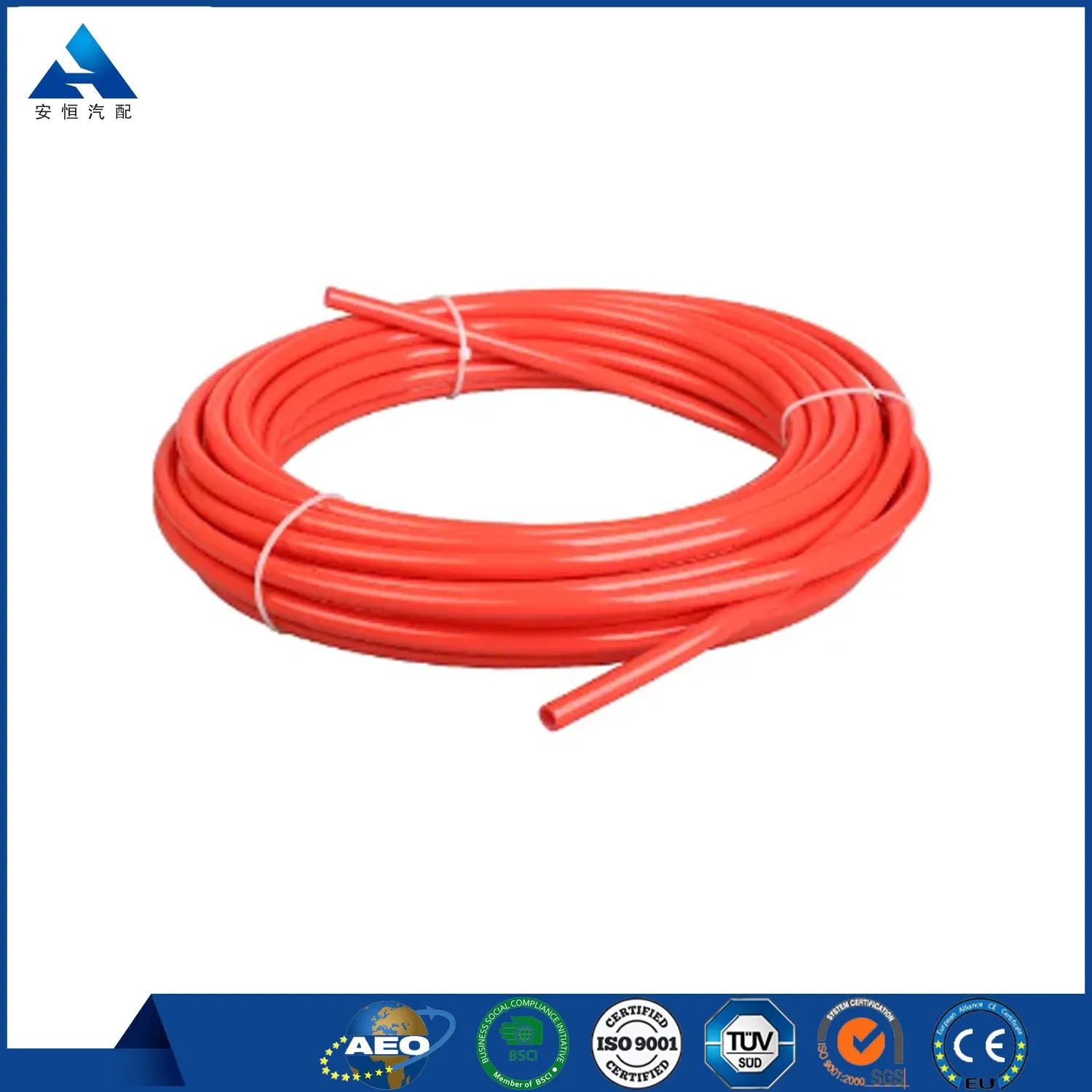

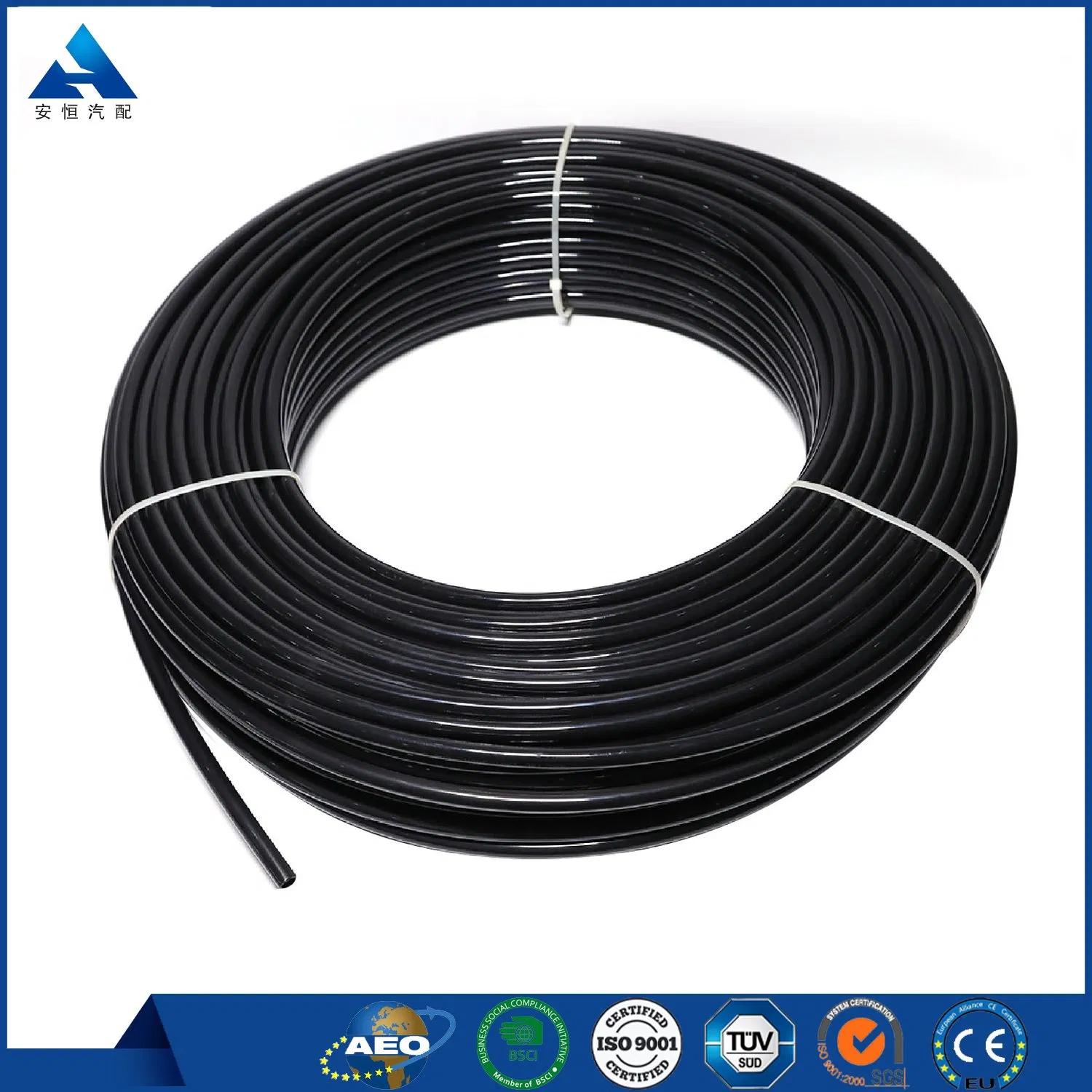

Nylon Coil Tube Features
Nylon Tube offers excellent wear ability, a smooth surface, low resistance, and anti-rustiness and anti-scaling properties. It is highly flexible, easily bended into various shapes, and simple to install. With high chemical and hydrolysis resistance and stable dimensions, it ensures little penetration and can be used for over ten years.
Designed for extreme conditions, it maintains resistance in high and low temperatures (-40°C to 120°C). It is ideal for transferring compressed air, water, oil, and chemical liquids.
Wide Applications: Used in light trucks, car hydraulic brake systems, power steering tubes, forklifts, loading trucks, mining vehicles, heavy machinery, ships, and other hydraulic mechanical transmission and control systems. Also suitable for paint and liquid resin spraying high-pressure pipes and air conditioning.
| Specification | O.D (mm) | I.D (mm) | W.P (bar) | B.P (bar) | Min Bend Radius (mm) |
|---|---|---|---|---|---|
| 3x0.5 | 3 | 2 | 30 | 90 | 18 |
| 4x0.75 | 4 | 2.5 | 31 | 93 | 20 |
| 4x1 | 4 | 2 | 45 | 135 | 30 |
| 5x1 | 5 | 3 | 34 | 102 | 35 |
| 6x1 | 6 | 4 | 27 | 81 | 40 |
| 8x1 | 8 | 6 | 19 | 57 | 50 |
| 10x1 | 10 | 8 | 15 | 45 | 65 |
| 10x1.25 | 10 | 7.5 | 19 | 57 | 65 |
| 12x1.5 | 12 | 9 | 19 | 57 | 70 |
| 14x1.5 | 14 | 11 | 19 | 57 | 80 |
| 16x2 | 16 | 12 | 19 | 57 | 130 |
| 18x1.5 | 18 | 15 | 15 | 36 | 155 |
| 23x2 | 23 | 19 | 20 | 33 | 120 |
