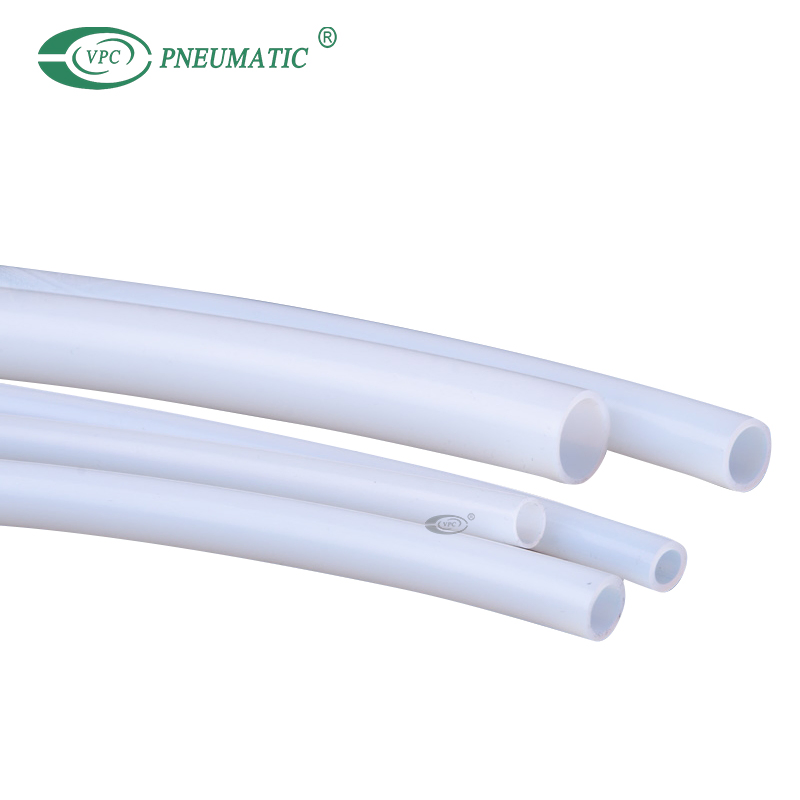

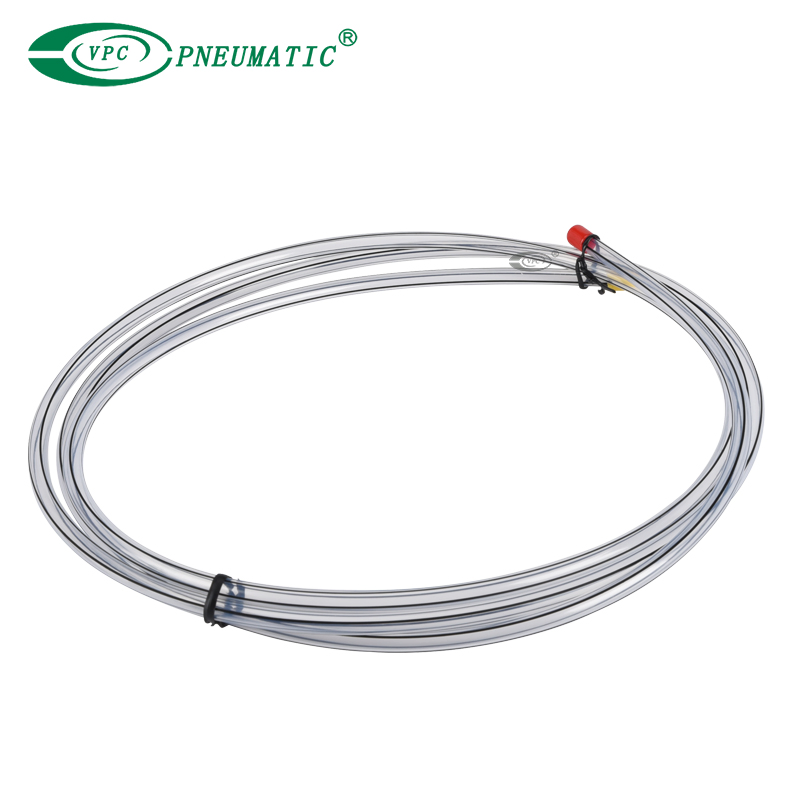

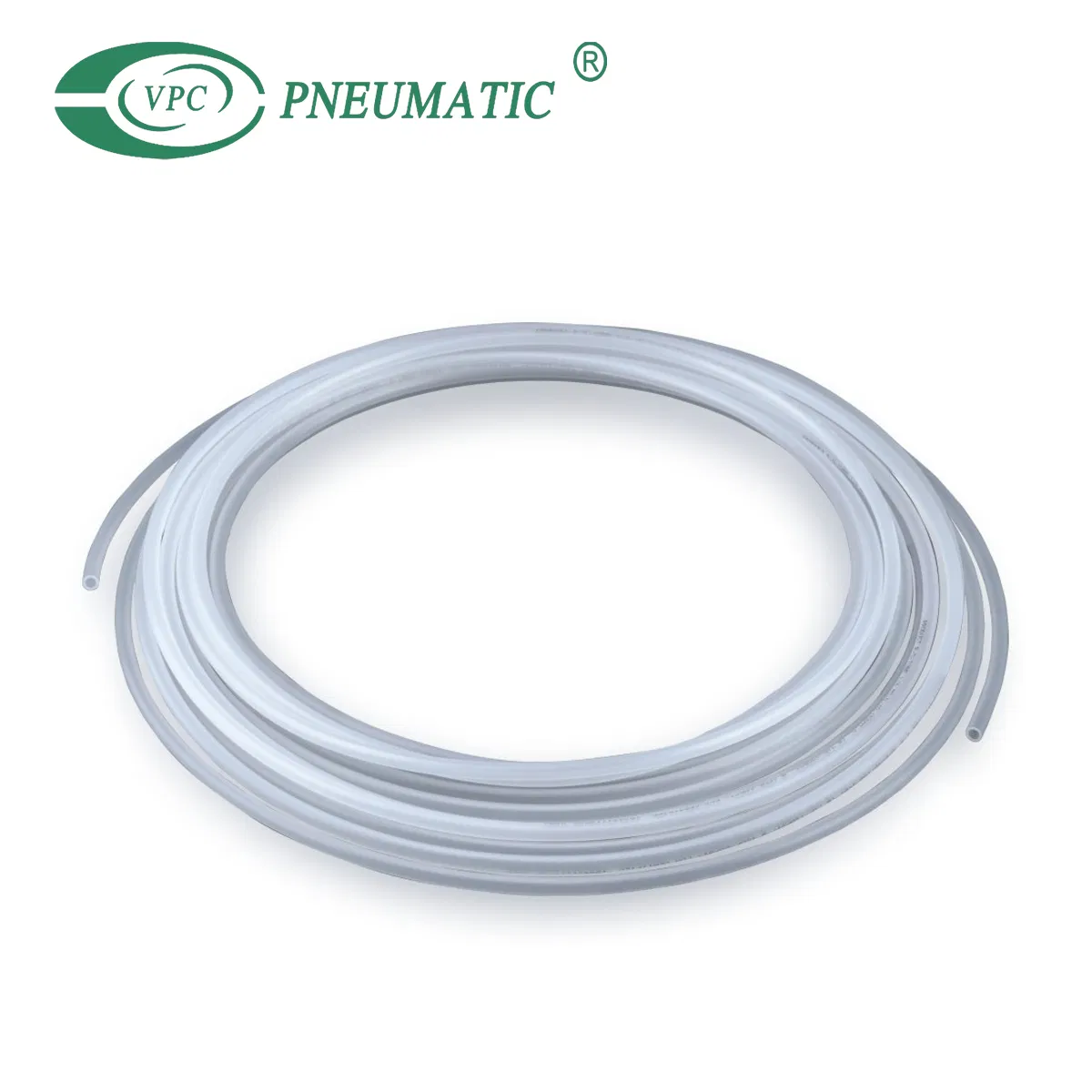

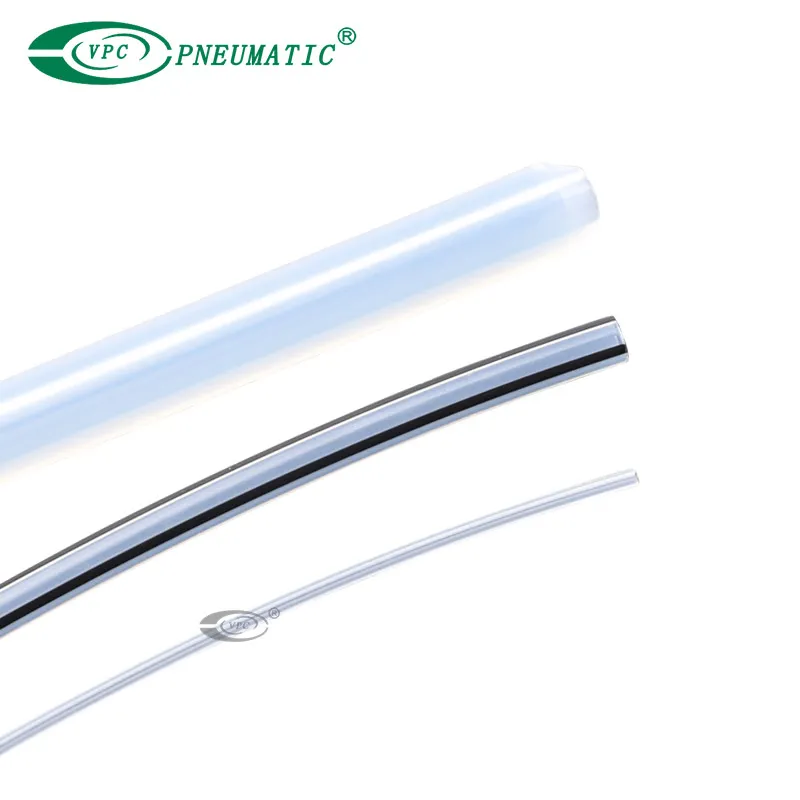

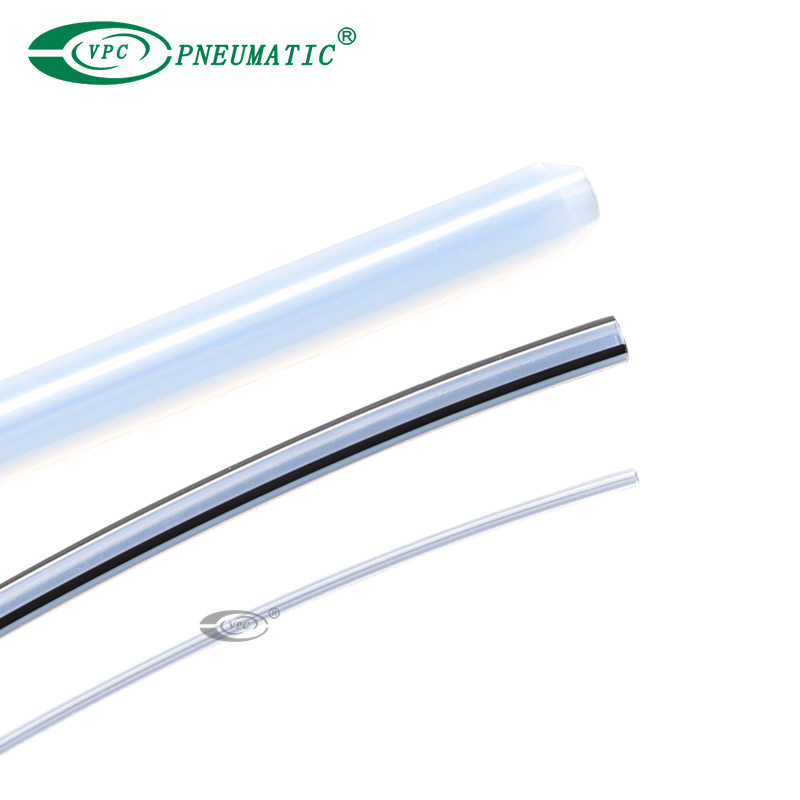

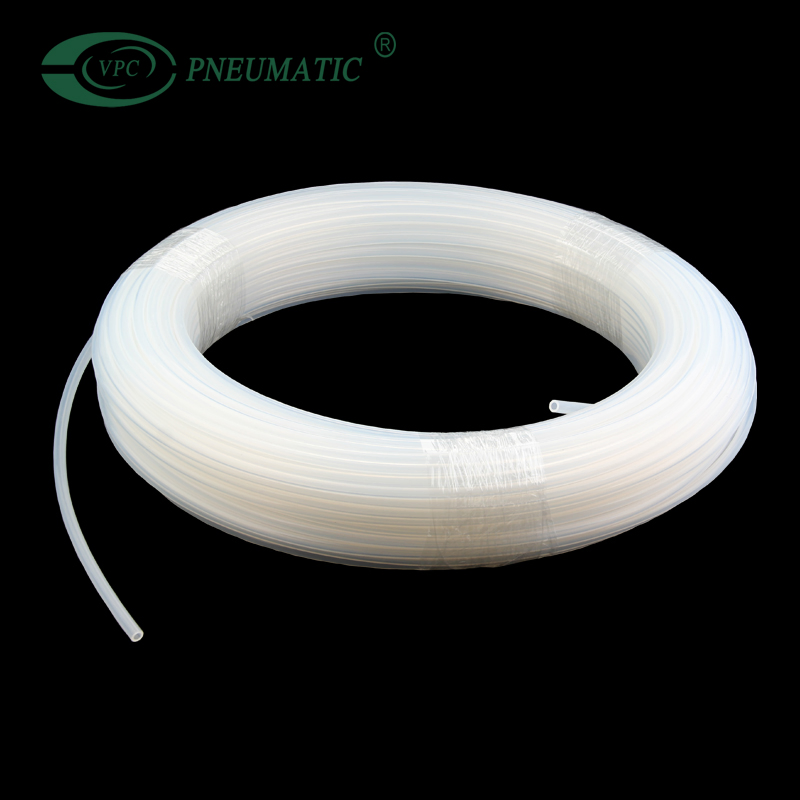

PTFE series is a highly flexible fluorine resin tubing designed for installation in small spaces. It is engineered for fluid transfer in demanding environments where heat and chemical resistance are critical.
| Model | PTFE | FEP | PFA |
|---|---|---|---|
| Material | Polytetrafluoroethylene resin | Fluorinated ethylene propylene resin | Tetrafluoroethylene perfluoroalkoxy vinyl ether copolymer |
| Fluid Admitted | Air, Inert gas, Water | ||
| Temperature Range | -65°C to 260°C (Water: 0-100°C) | -65°C to 200°C (Water: 0-100°C) | -65°C to 260°C (Water: 0-100°C) |

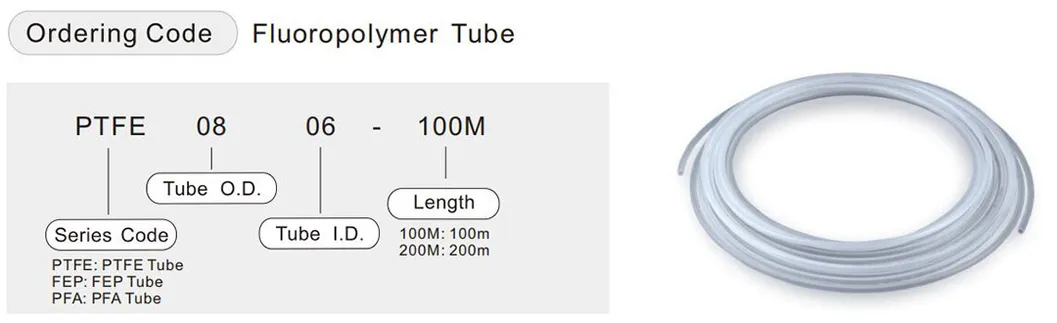

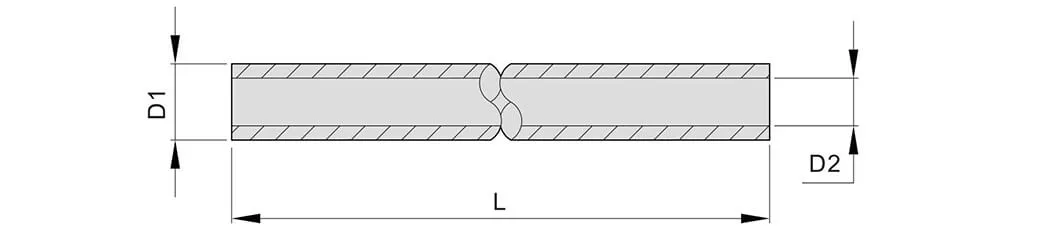

| Model | D1 (mm) | D2 (mm) | Max Pressure @ 20ºC (bar) | Length (m/roll) |
|---|---|---|---|---|
| PTFE0425 | 4 | 2.5 | 16 | 200 |
| PTFE0604 | 6 | 4 | 14 | 200 |
| PTFE0804 | 8 | 6 | 9 | 100 |
| PTFE1075 | 10 | 7.5 | 9 | 100 |
| FEP0402 | 4 | 2 | 23 | 200 |
| FEP0604 | 6 | 4 | 15 | 200 |
| PFA0425 | 4 | 2.5 | 17 | 200 |
| PFA1210 | 12 | 10 | 6 | 100 |
* Note: Other sizes can be offered upon request.
Packaging Types:
Standard White Box, Color Box, Reinforced Carton, Palletized Shipping.
Delivery Lead Time:
Standard: 10 workdays | Custom: 25 workdays
Transportation:
Express (DHL, UPS, TNT, FEDEX), Sea Freight, and Air Transport.
