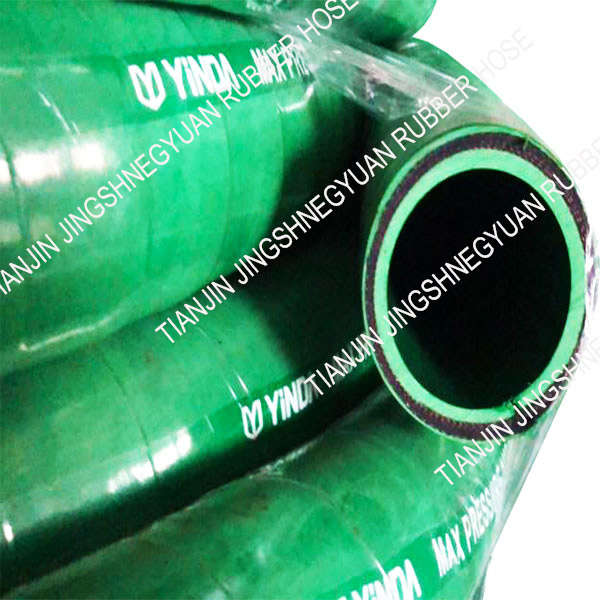

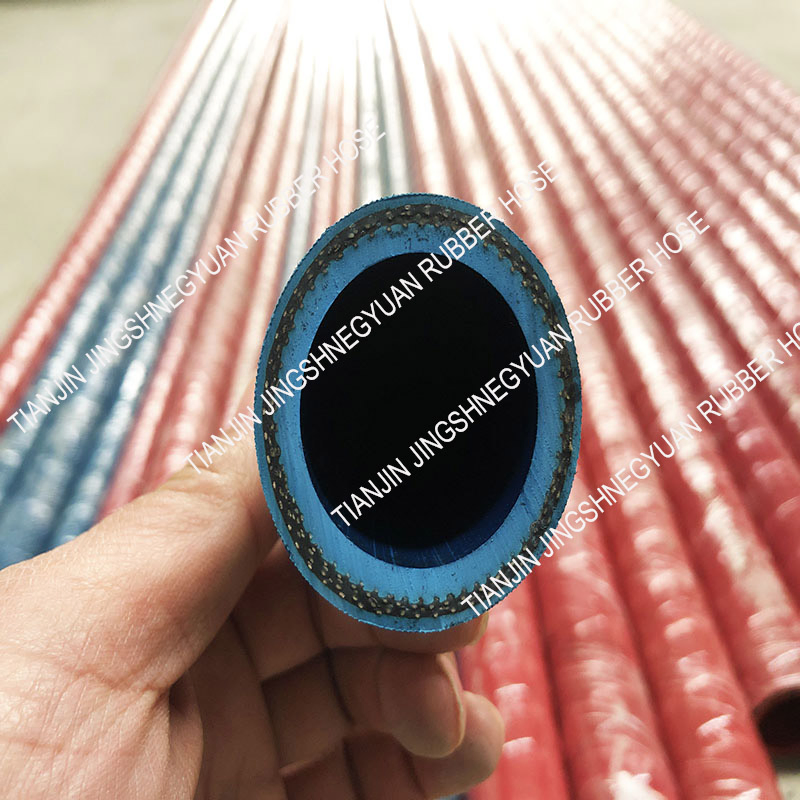

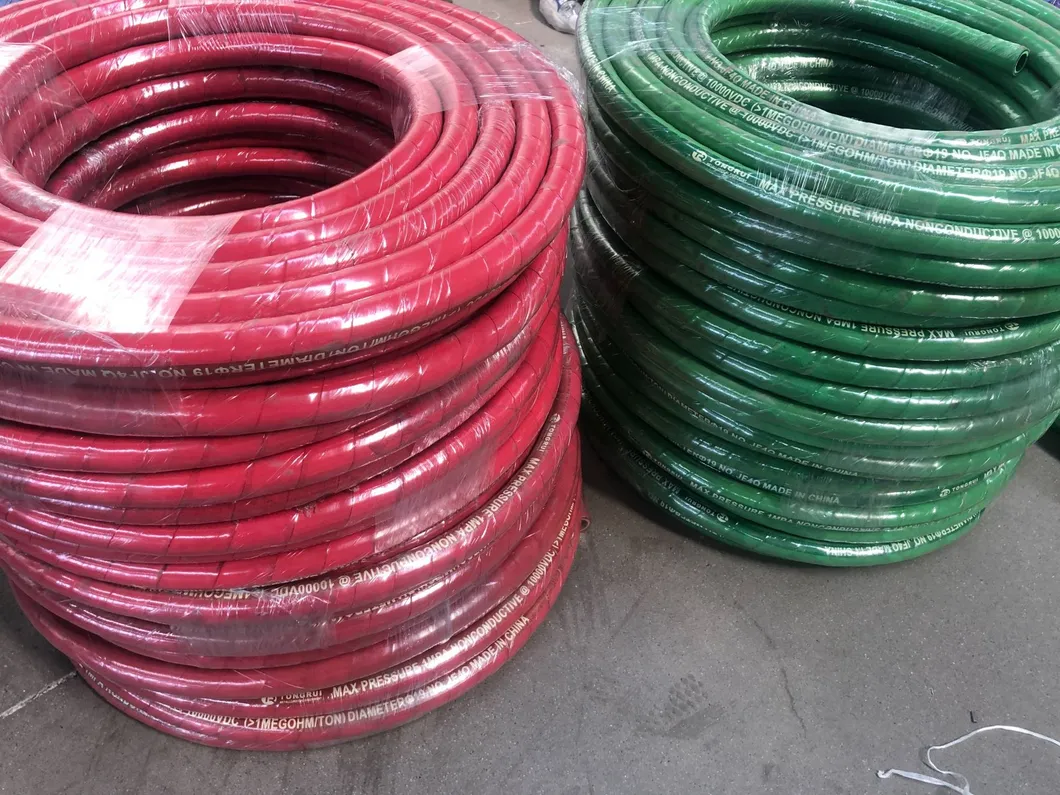

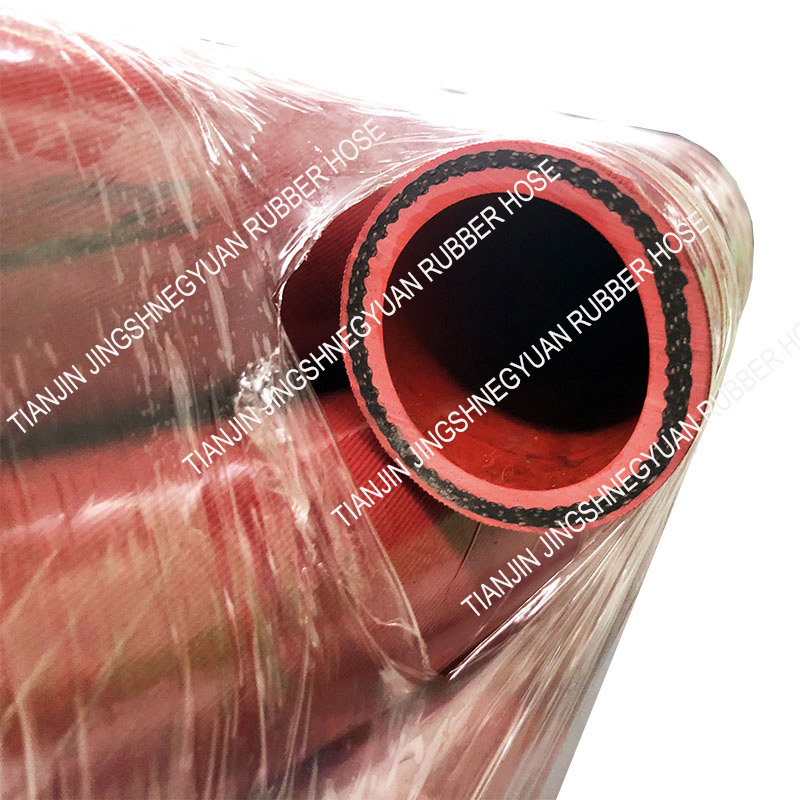

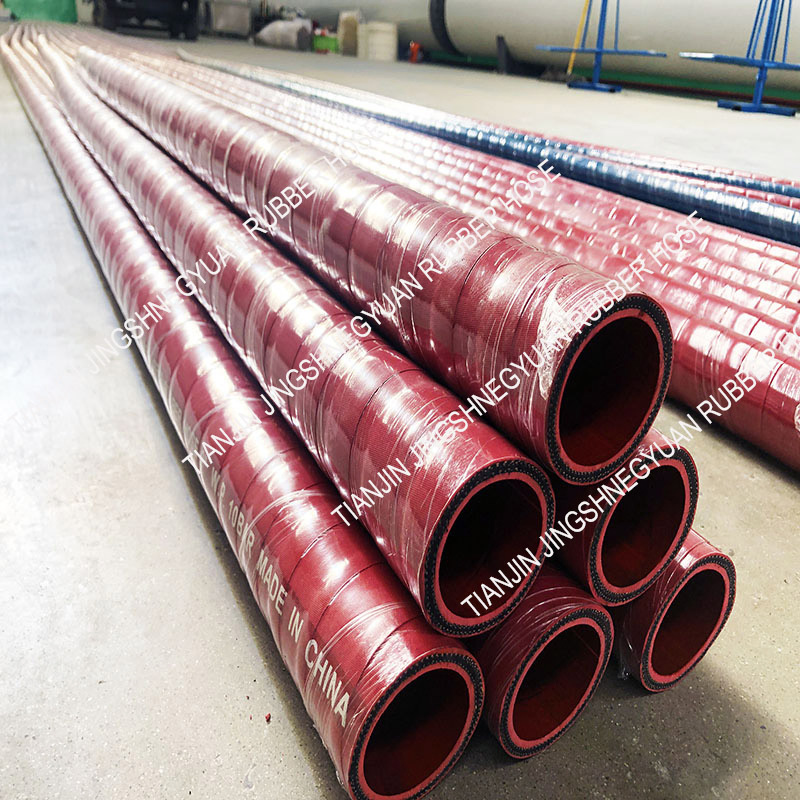

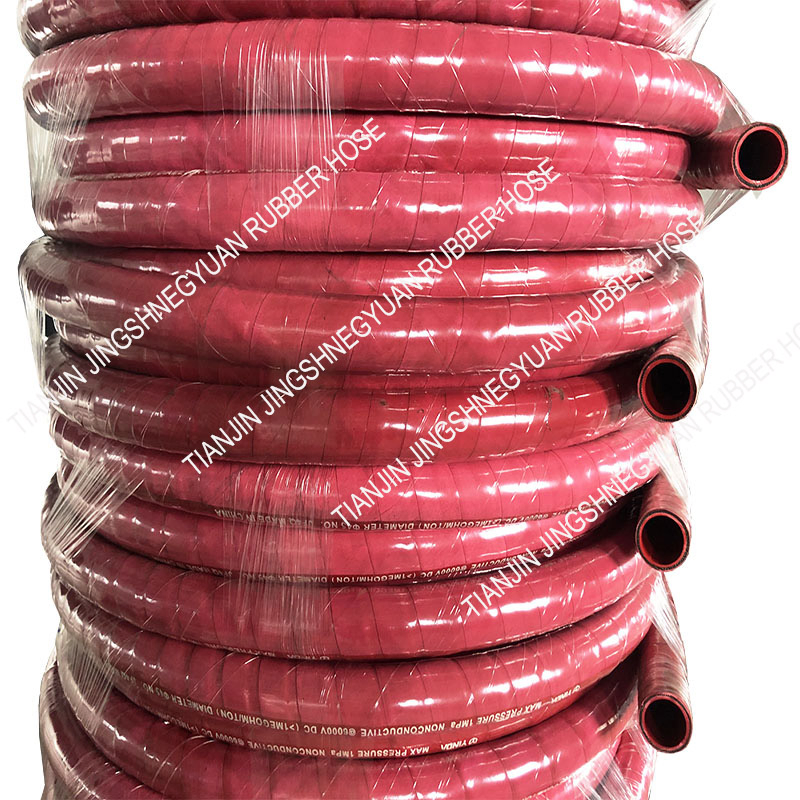

Heat Resistant Insulated Carbon Free Rubber Hose for Cooling System Induction Furnace

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
JSY-CH
Color
Black
Product Name
Non Conductive Furnace Hose
Working Pressure
10 20 30 Bar or More
Application
Dewatering, Mining, Pump Solutions
Materials
Natural Rubber, Br, SBR
Size
1inch to 6inch
Connection
Flange, Camlock
Industry
Furnace, Steel Plant
Production Capacity
80,000 M/Month
🔍 Product Description
Heat Resistant Insulated Carbon Free Rubber Hose

Recommended for specialist furnace coolant applications in electrical steel industries and other non-conductive applications. Engineered with specially developed carbon-free tube and cover that meet service requirements of low leakage current (less than 20 micro A at 6 KV DC).

Carbon-free cable Coolant hoses move coolant fluid from your radiator to the hottest part of your engine and then return the overheated fluids back to the radiator to begin the cycle again, ensuring optimal furnace cooling performance.

Carbon-free furnace hose for induction furnace cooling systems is suitable for special occasions requiring high voltage resistance and can deliver hot water, hot air, or other inert gases.
📸 Detailed Photos

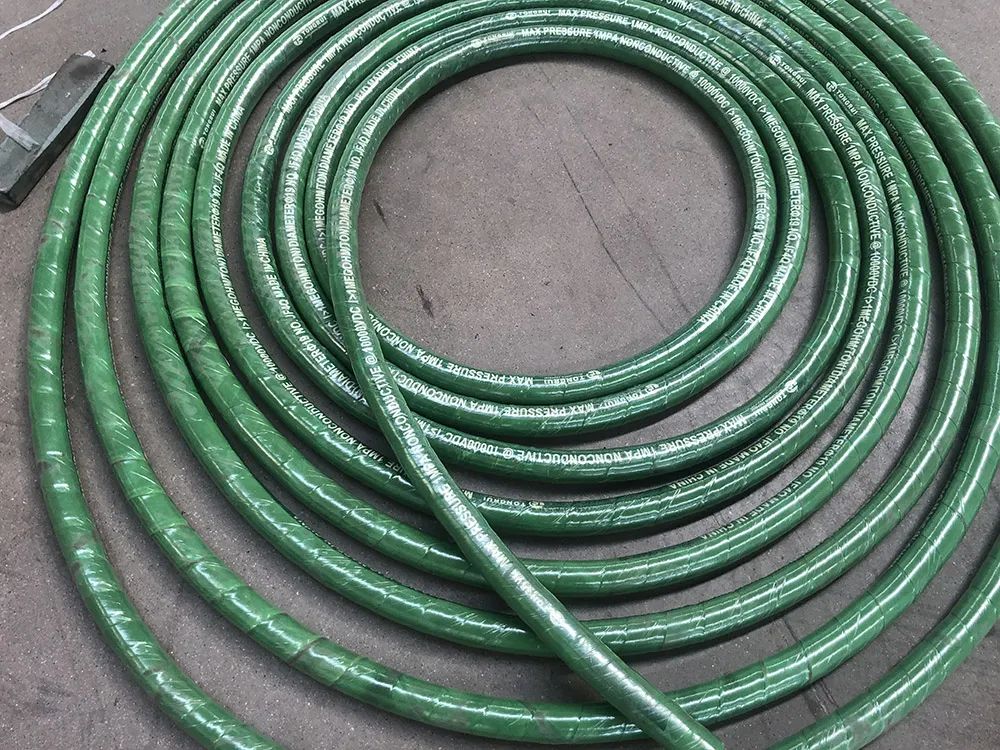

Detail 1

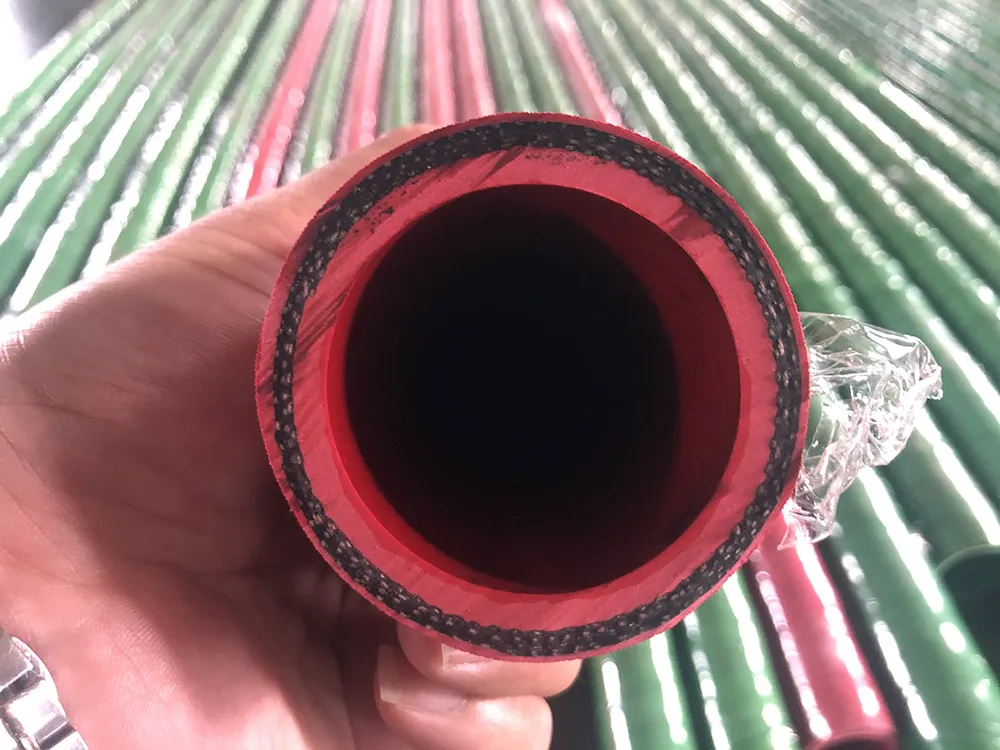

Detail 2

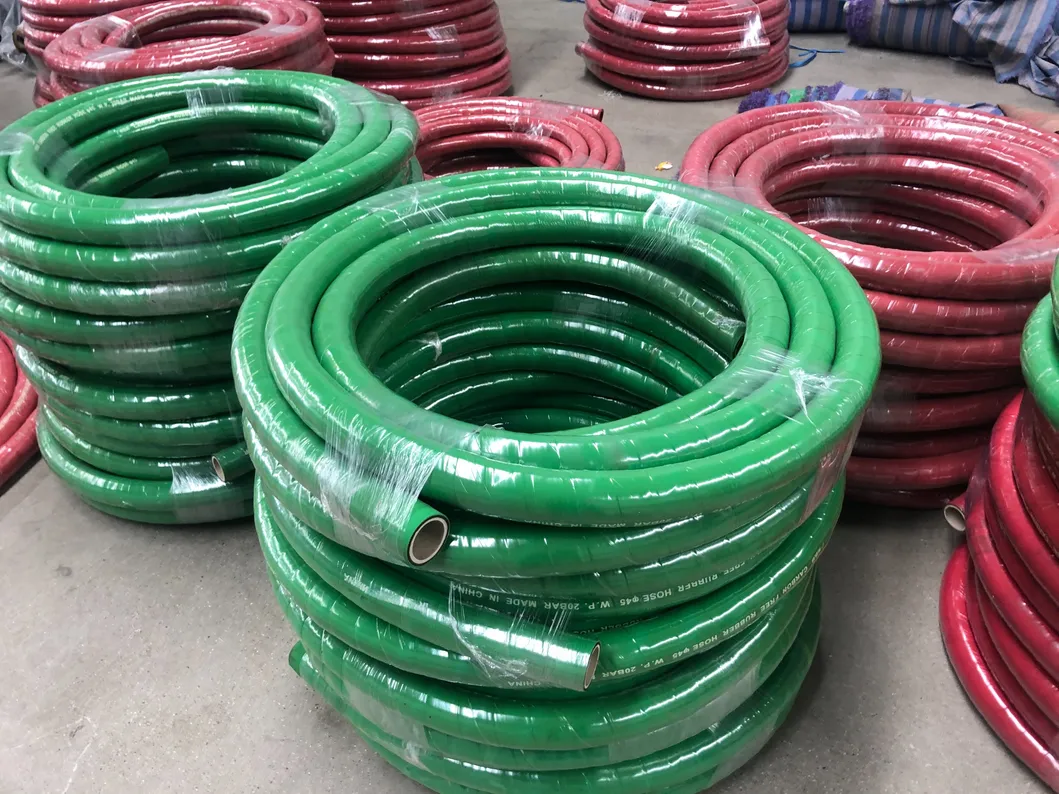

Detail 3

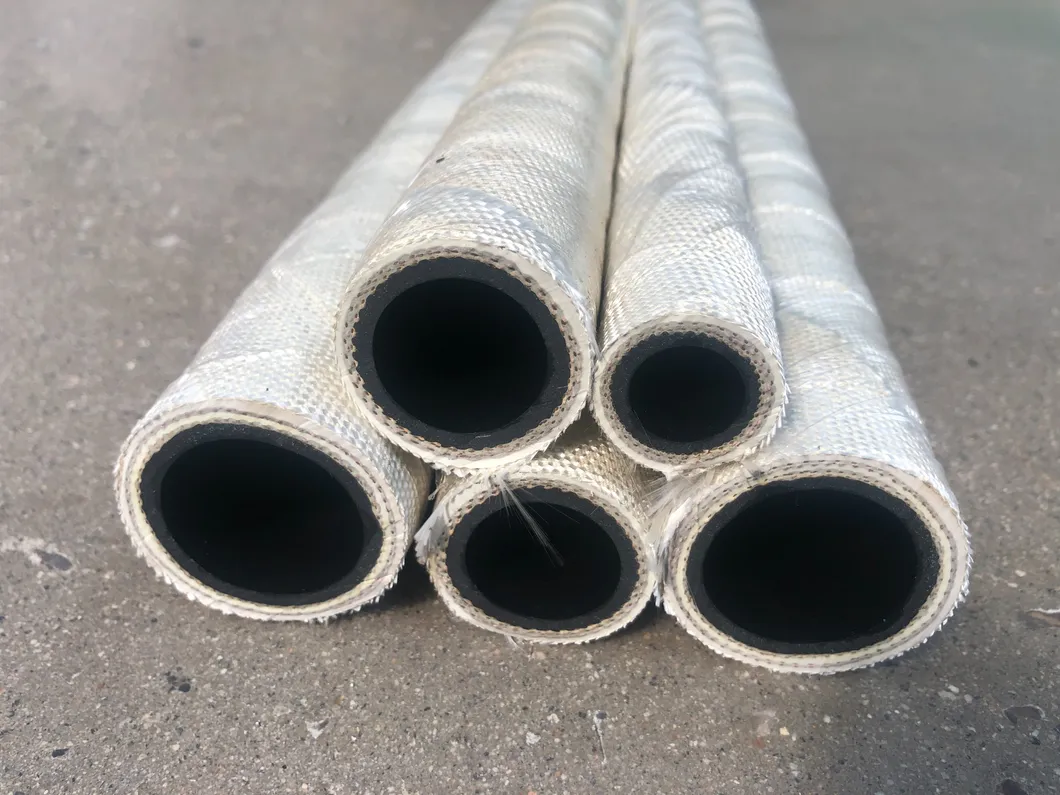

Detail 4

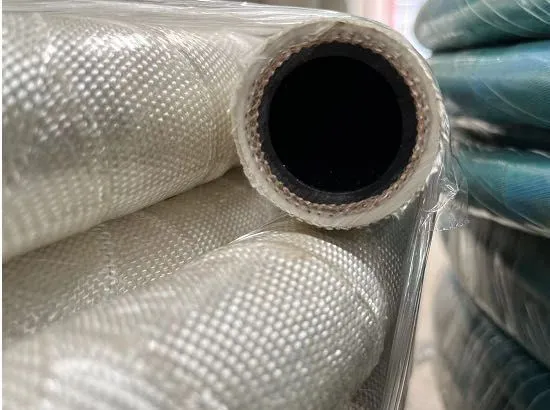

Detail 5

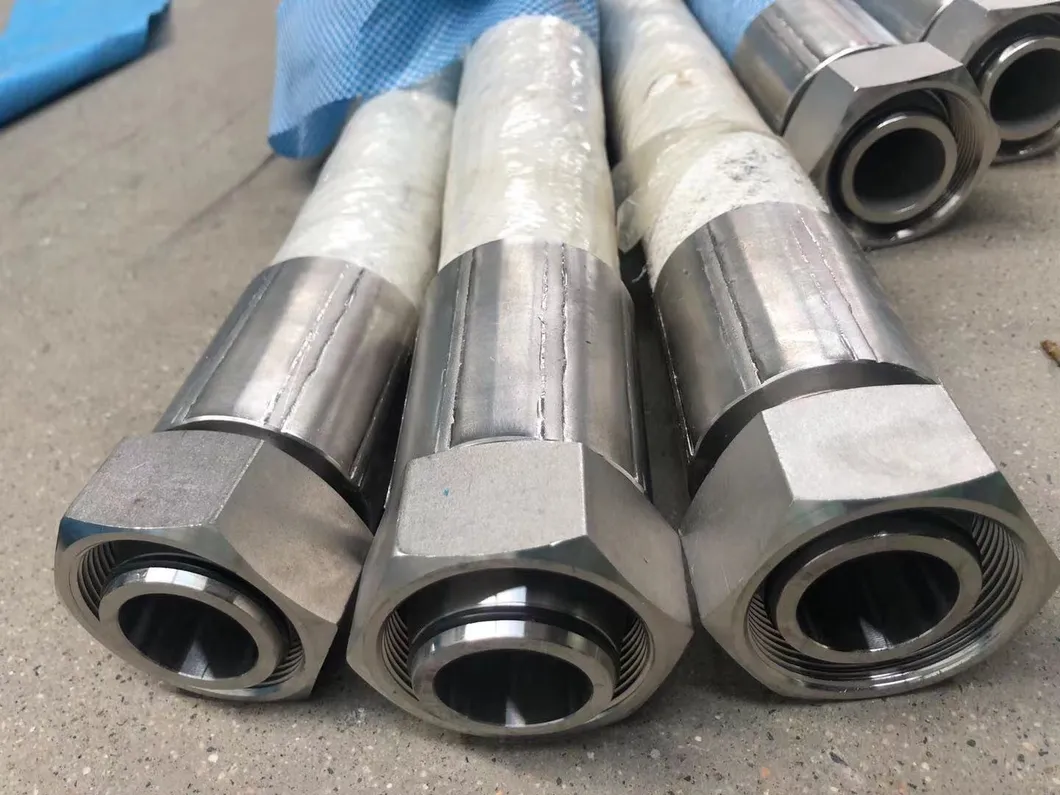

Detail 6
⚙️ Product Parameters
  1. Construction: Inner EPDM synthetic rubber layer, high strength multi-layer fabric braided layer, and wear-resistant EPDM synthetic rubber outer layer.
  2. Special Features: Carbon-free, high insulation, non-conductive, good oil and heat resistance, lightweight, and durable.
  3. Temperature Range: -30ºC to 100ºC.
  4. Customization: Color, size, thickness, pressure, and length are all customizable.
Inside Diameter Outside Diameter Working Pressure Burst Pressure Nominal Weight Bending Radius Length
inch mm mm bar psi bar psi kg/m mm m
3/4193110150304500.5720020/40
1253610150304500.7125020/40
2516410150304501.5530020/40
3769010150304502.5440020/40
410211710150304503.4450020/40
615216810150304505.4160020/40
📦 Packaging & Shipping

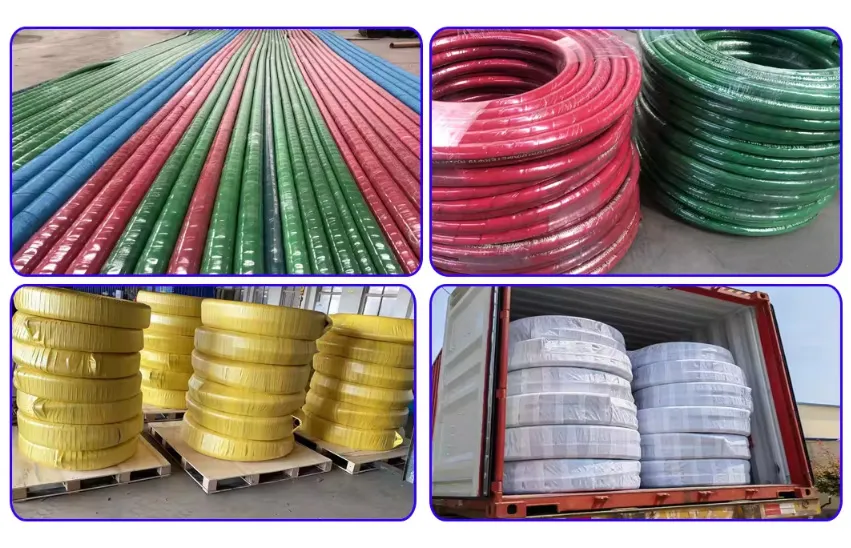

Packaging
🏢 Profile & Advantages

As experts in the field of hoses for over 15 years, we serve a wide range of industries including offshore engineering, oil industry, tunneling, water treatment, chemical, mining, shipbuilding, and more. You can count on us for high-quality products, solid advice, and reliable service at a reasonable price.

  • Professional manufacturing factory with skilled workers.
  • Strict quality and service control system (API & ISO certified).
  • Custom design and research based on specific requirements.
  • Timely delivery and flexible payment methods.
🚀 Application

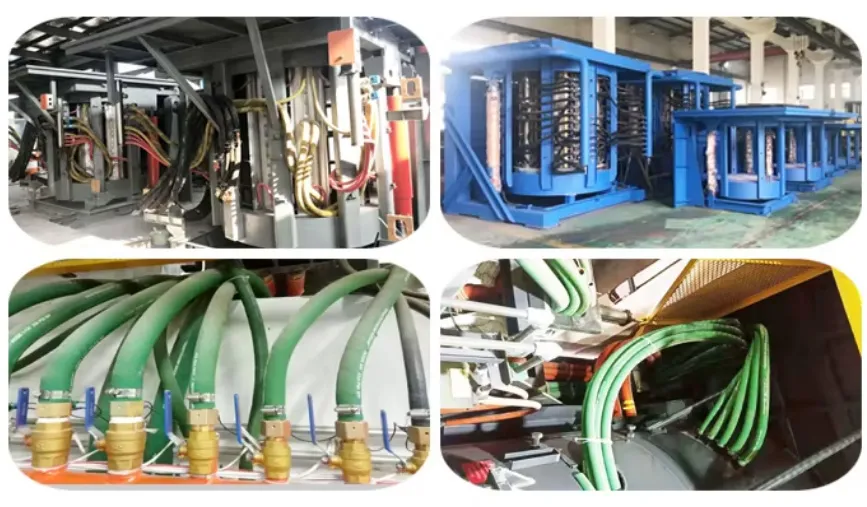

Application Scenarios
❓ Frequently Asked Questions
Q1: What are the advantages of your rubber hoses?
Our rubber hoses are certified by API and ISO systems. With over 10 years of export experience, our products have a reputation for high quality and reasonable prices across Europe, America, and Southeast Asia.
Q2: Can you produce rubber hoses with my own brand?
Yes, we have been offering professional OEM services since our factory was established and have rich experience in brand customization.
Q3: How do you ensure product quality?
Every single hose undergoes a rigorous production process and is tested at every step to ensure it meets technical standards.
Q4: How long does it take for an order to be delivered?
Large sea orders usually take 30 days. Smaller quantities can be delivered via air freight within 10 days, depending on the order size and current stock.
Q5: What is your monthly production capacity?
With over 30 production lines and top-tier equipment, we can supply up to 300,000 meters of hose within a single month.
Q6: Can the technical specifications be customized?
Yes, all industrial rubber hose sizes, colors, and pressure ratings can be fully customized according to your specific requirements.
