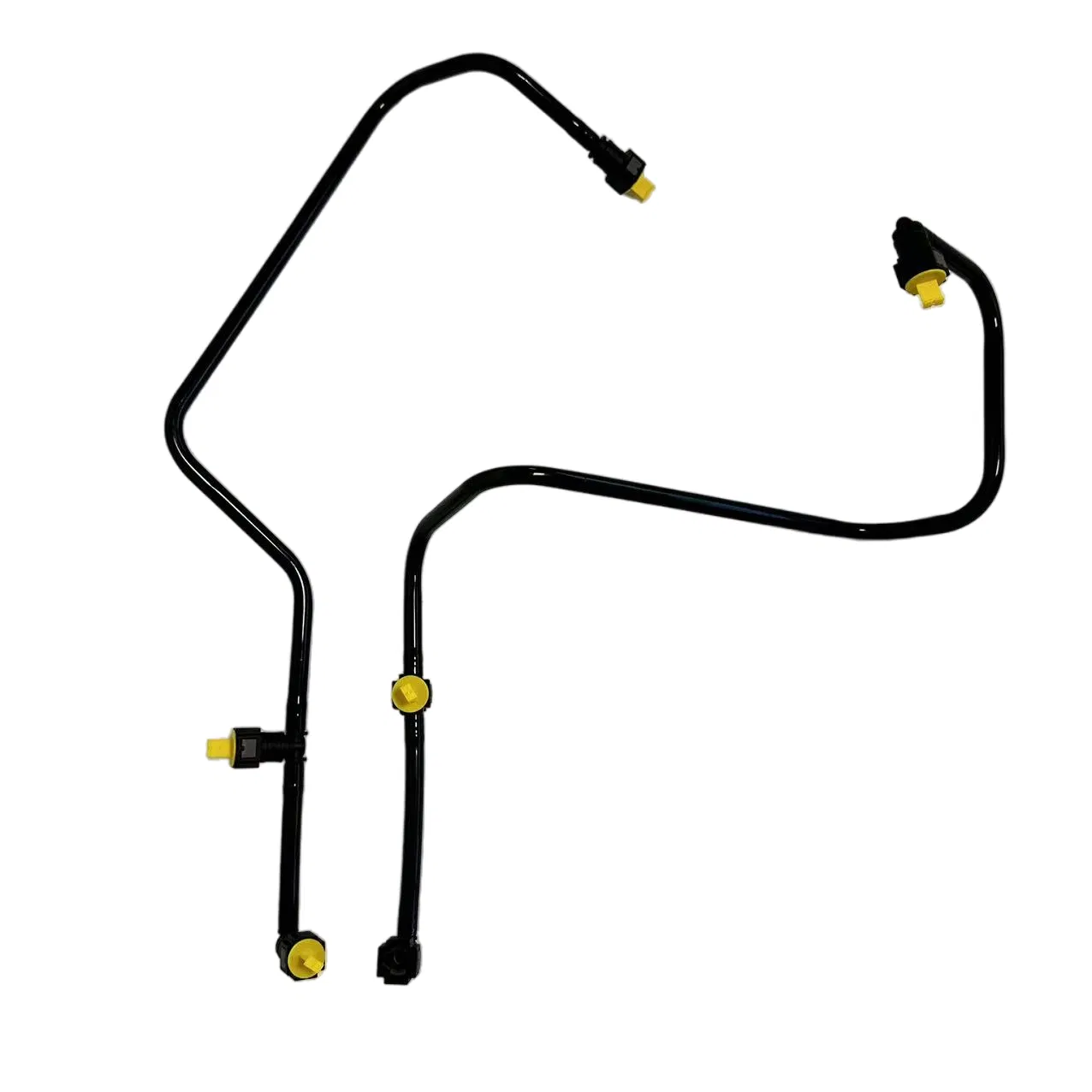

Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
1 / 5
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems
Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems

Multi Layer Nylon Fuel Line Assembly Quick Couplings Suitable Original Factory Custom Automotive Parts Fuel Cooling Vacuum Systems

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
Nylon Pipe
Body Material
Aluminium
Component
Fuel Filler Tube
Certification
ISO9001
Material
PA12/PA11
Oil Resistance
Excellent
High Temp Resistance
-40ºC to 125ºC
Wear Resistance
Durable
Specification
10mm x 1mm
Origin
China
HS Code
83079000
Production Capacity
100,000 Sets/Year
📦 Packaging & Delivery
Package Size
60.00cm * 30.00cm * 15.00cm
Package Gross Weight
2.000kg
Transport Package
Plastic Bag + Carton Box + Pallet
🔍 Product Description

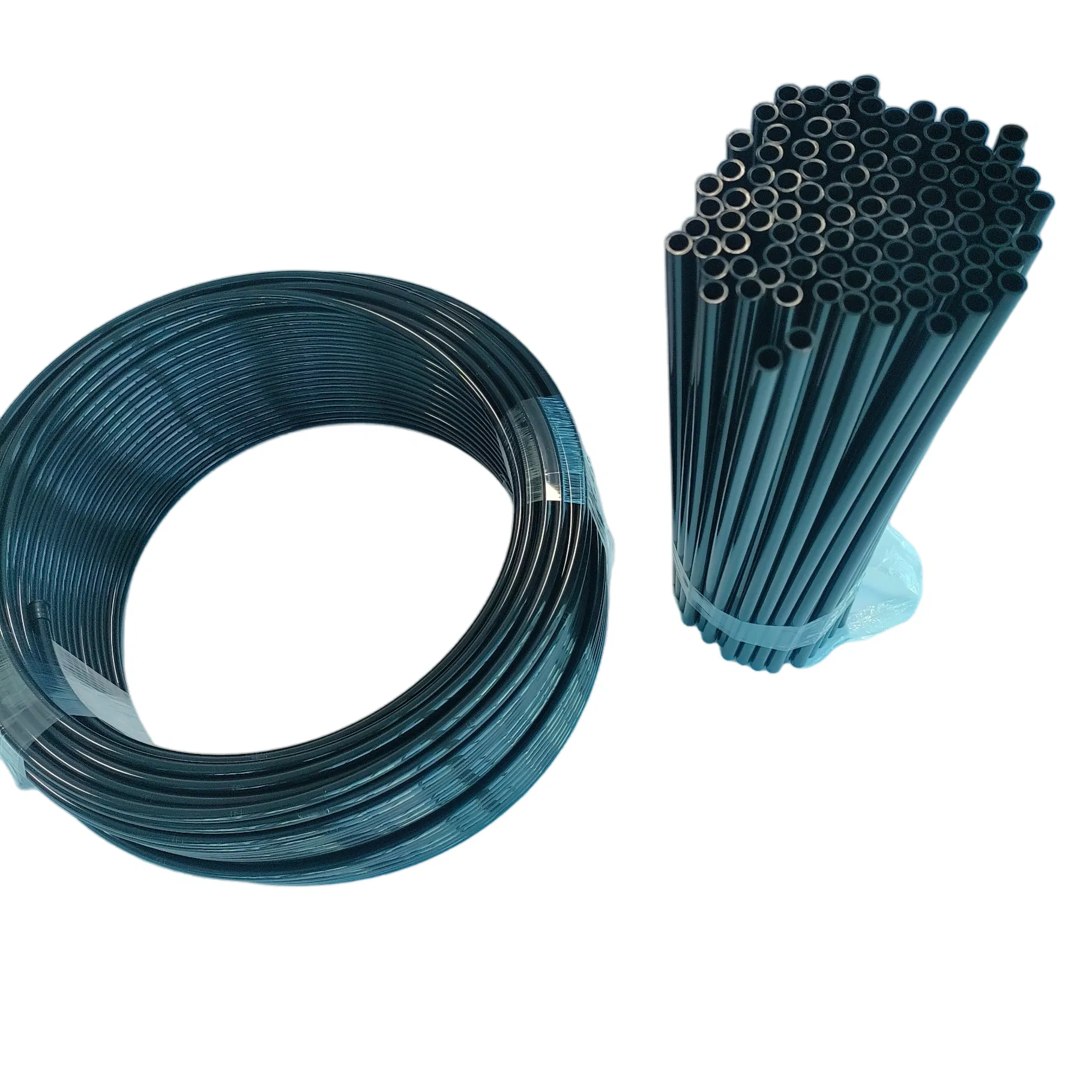

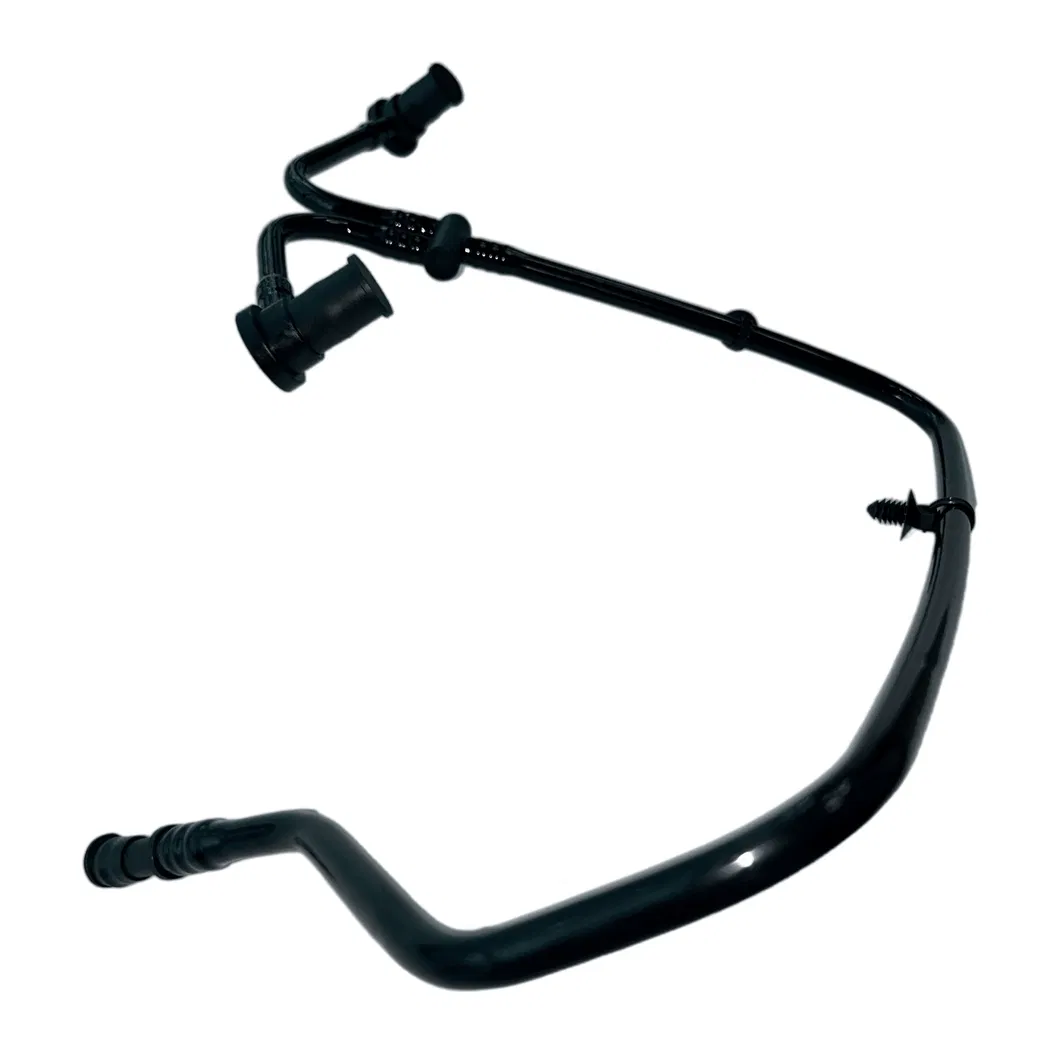

Multi Layer Nylon Fuel Line
1. Material Characteristics and Technological Innovation
Multilayer nylon tubes are made of high-performance materials (PA66, PA12), offering lightweight, high temperature resistance, chemical corrosion resistance, and impact resistance.

Nylon 66: Suitable for automotive, aviation, and high-speed rail, providing high strength and durability.

Nylon 12: Known for low density, low temperature toughness, and chemical resistance, ideal for new energy vehicles and submarine cables.

2. Application Fields
Widely used in industrial scenarios requiring complex performance combinations, such as new energy vehicle fluid pipelines, thermal management systems, and battery packaging.
3. Production Technology and Advantages
Multi-layer structure design combines different material layers (nylon with rubber or metal) to optimize performance, achieving a balance between lightweight design and pressure resistance.
Parameter Name Description/Value Parameter Name Description/Value
Product Name Multilayer reinforced nylon pipe (PA12/PA6/PA66) Working Pressure 0.5Mpa - 20Mpa
Structure Design Inner (Corrosion-resistant) + Reinforcement (Polyester/Aramid) + Outer (Wear-resistant) Blasting Pressure ≥ 2 times working pressure
Application Braking systems, pneumatic tools, hydraulic systems, fluid transmission Pulse Pressure ≥ 1 million cycles
Inner Diameter (ID) 4mm / 6mm / 8mm / 10mm (Customizable) Operating Temp -40ºC ~ +120ºC (Instant up to +150ºC)
Outer Diameter (OD) 8mm / 12mm / 16mm / 20mm Low Temp Resistance Maintains flexibility at -40ºC
Wall Thickness 1.5mm - 3.5mm Medium Resistance Oil, weak acid/alkali, ethanol
Gallery Image 1
Gallery Image 2
Gallery Image 3

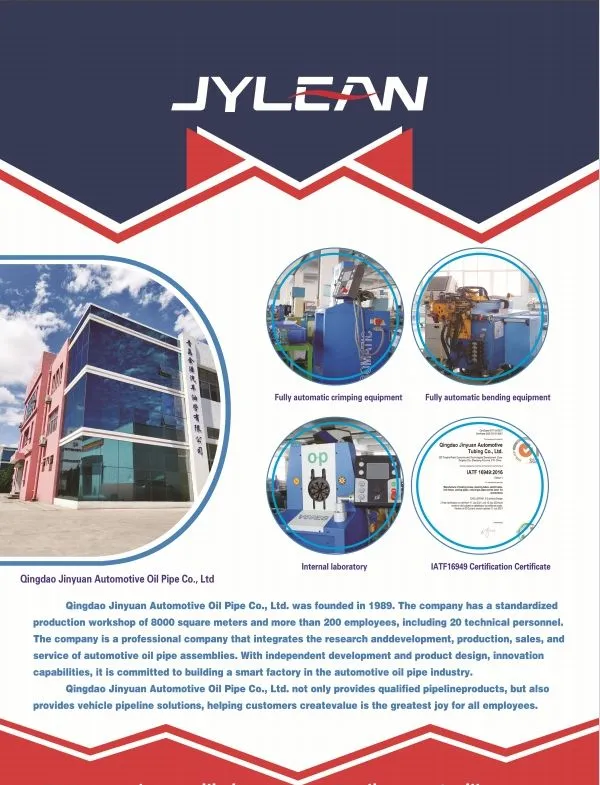

Gallery Image 4
Gallery Image 5

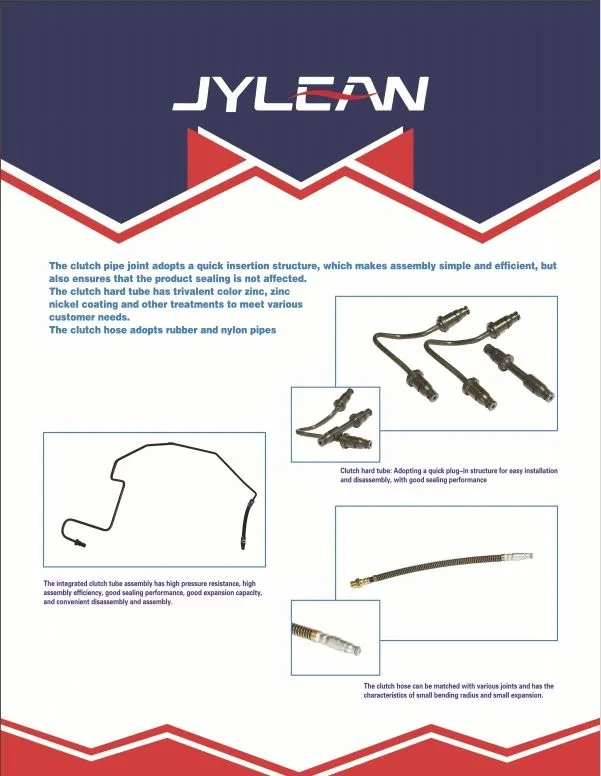

Gallery Image 6
Gallery Image 7

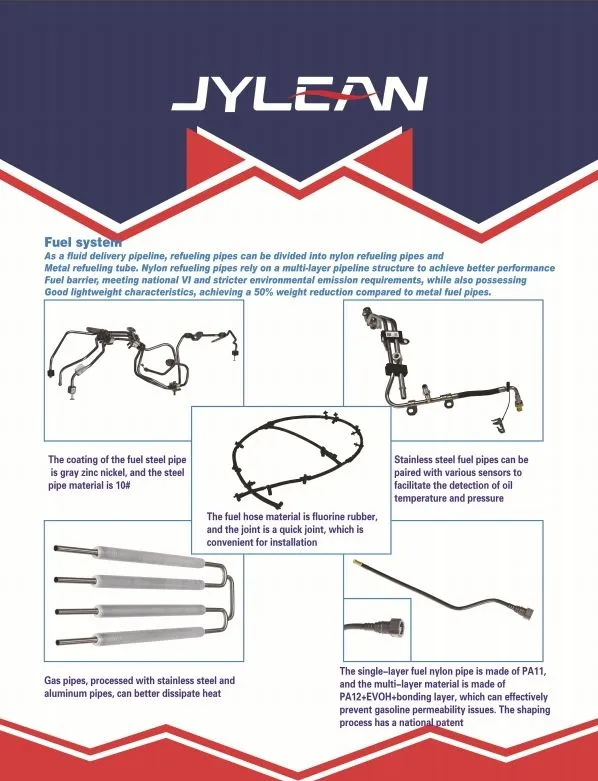

Gallery Image 8

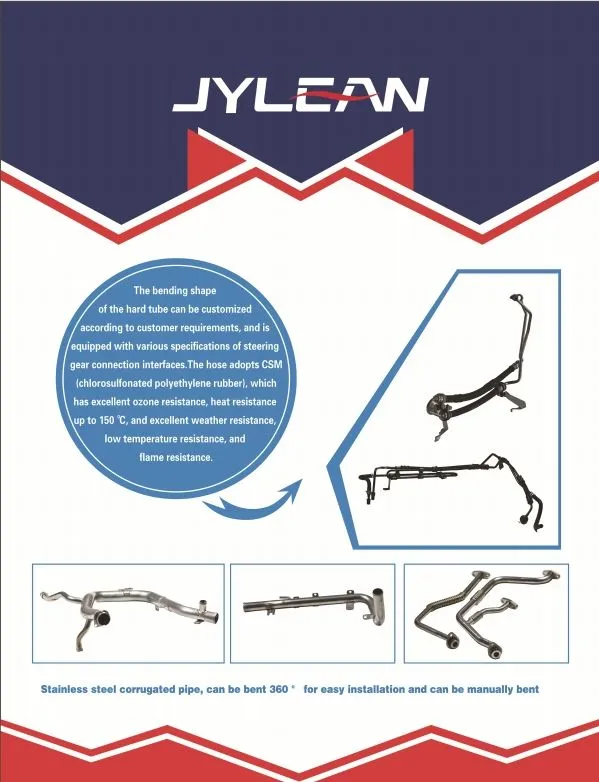

Gallery Image 9
Gallery Image 10

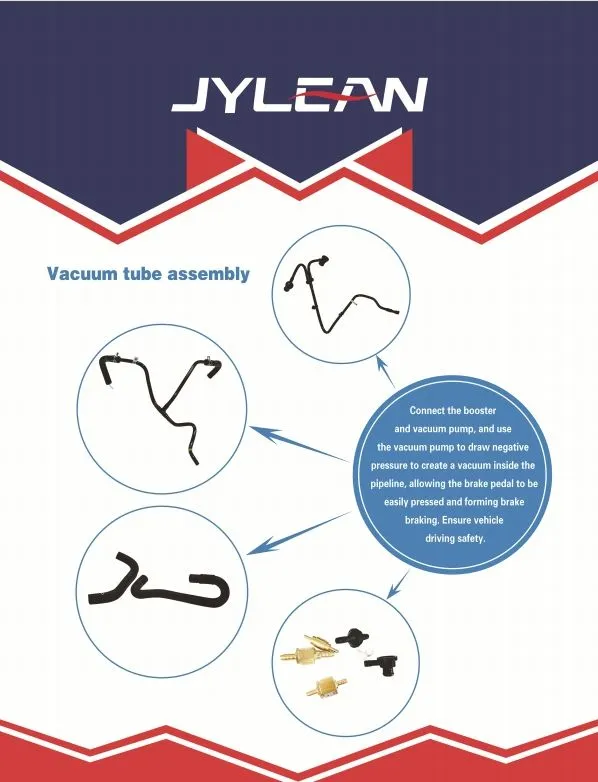

Gallery Image 11
Frequently Asked Questions
Q1: What is your manufacturing experience in the automotive industry?
We are a professional manufacturer with over 30 years of experience, specializing in automotive pipe assemblies and exporting to over 10 countries worldwide.
Q2: Can you produce customized pipes based on specific samples?
Yes, we have independent development and design capabilities. We can produce exactly according to your physical samples or technical drawings.
Q3: What is your sample policy for new clients?
Generally, samples are provided free of charge. However, the customer is responsible for the associated shipping and delivery costs.
Q4: What are the standard payment and delivery terms?
We typically require a 30% deposit via T/T, with the remaining 70% due before delivery. We support FOB, CIF, EXW, and CFR terms.
Q5: How long is the typical production lead time?
Standard delivery time is approximately 45 days, though this may vary depending on the specific items and the total order quantity.
Q6: How do you ensure product quality before shipment?
We conduct 100% visual inspections and rigorous performance tests on all goods before they leave our facility to ensure they meet all technical standards.
