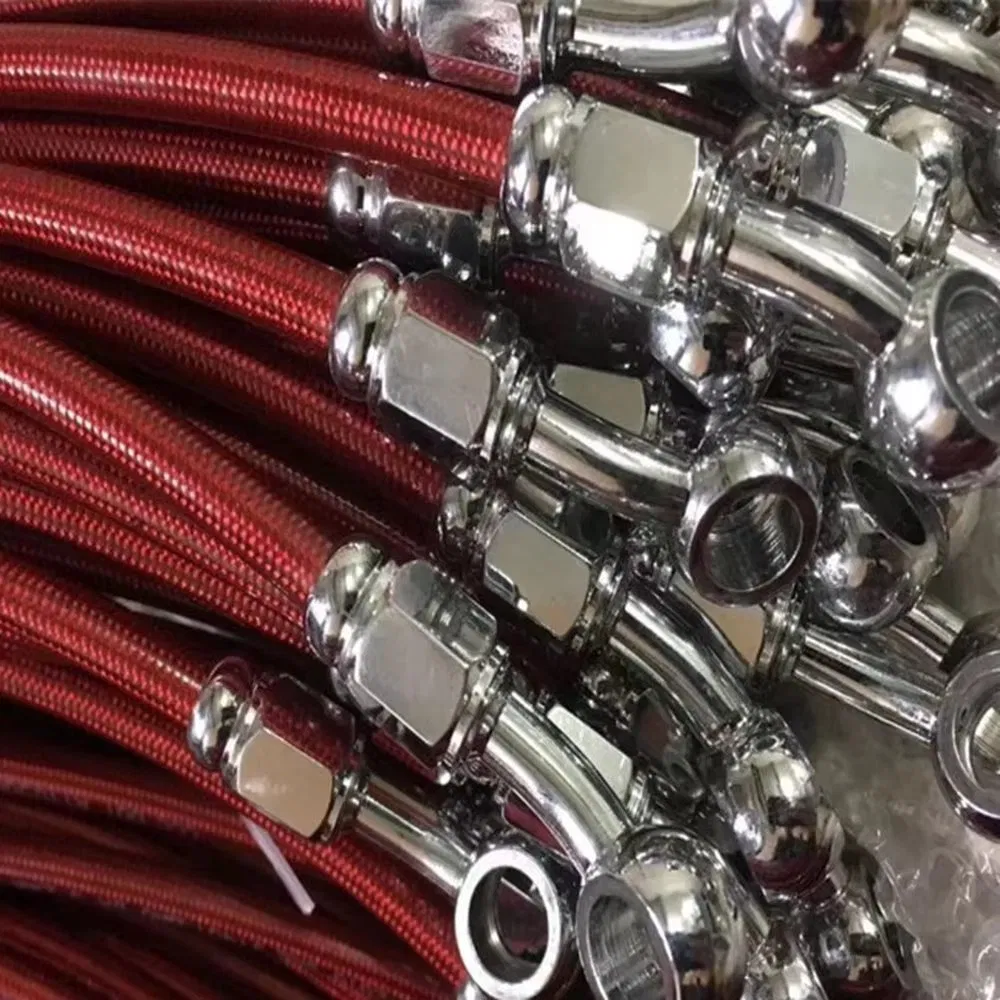

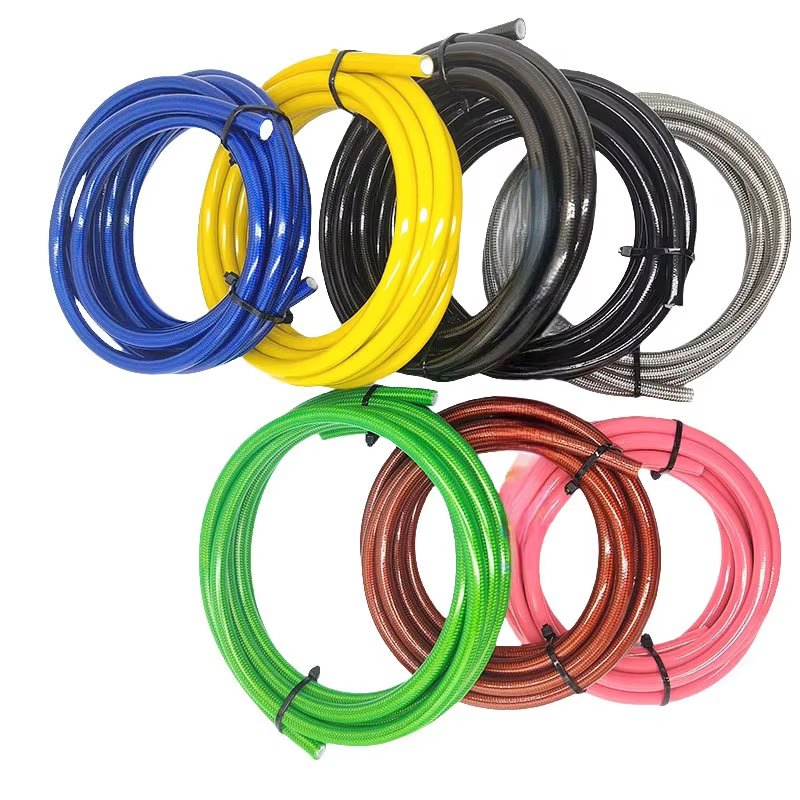

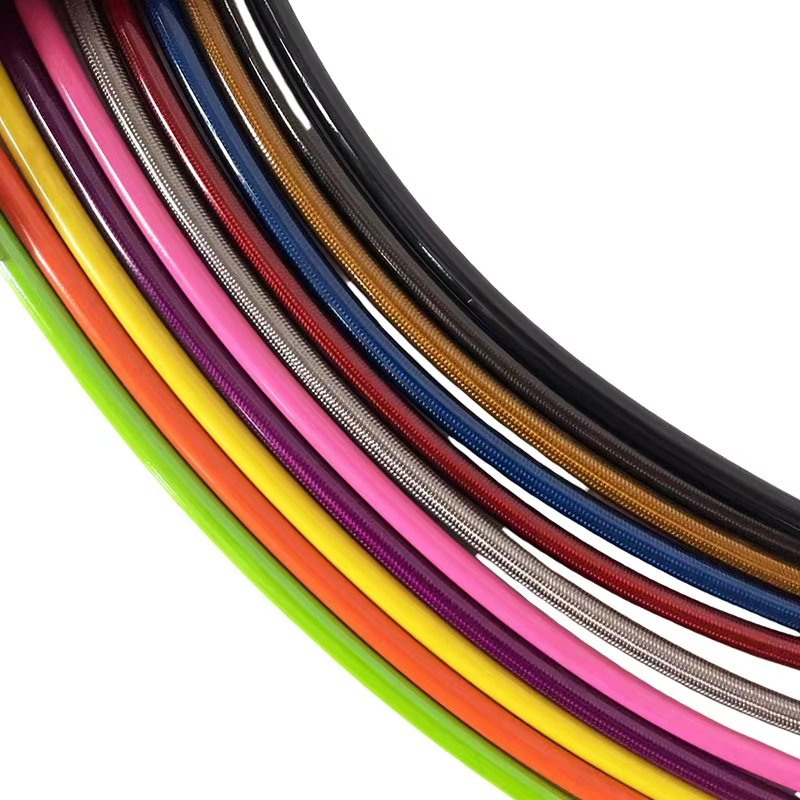

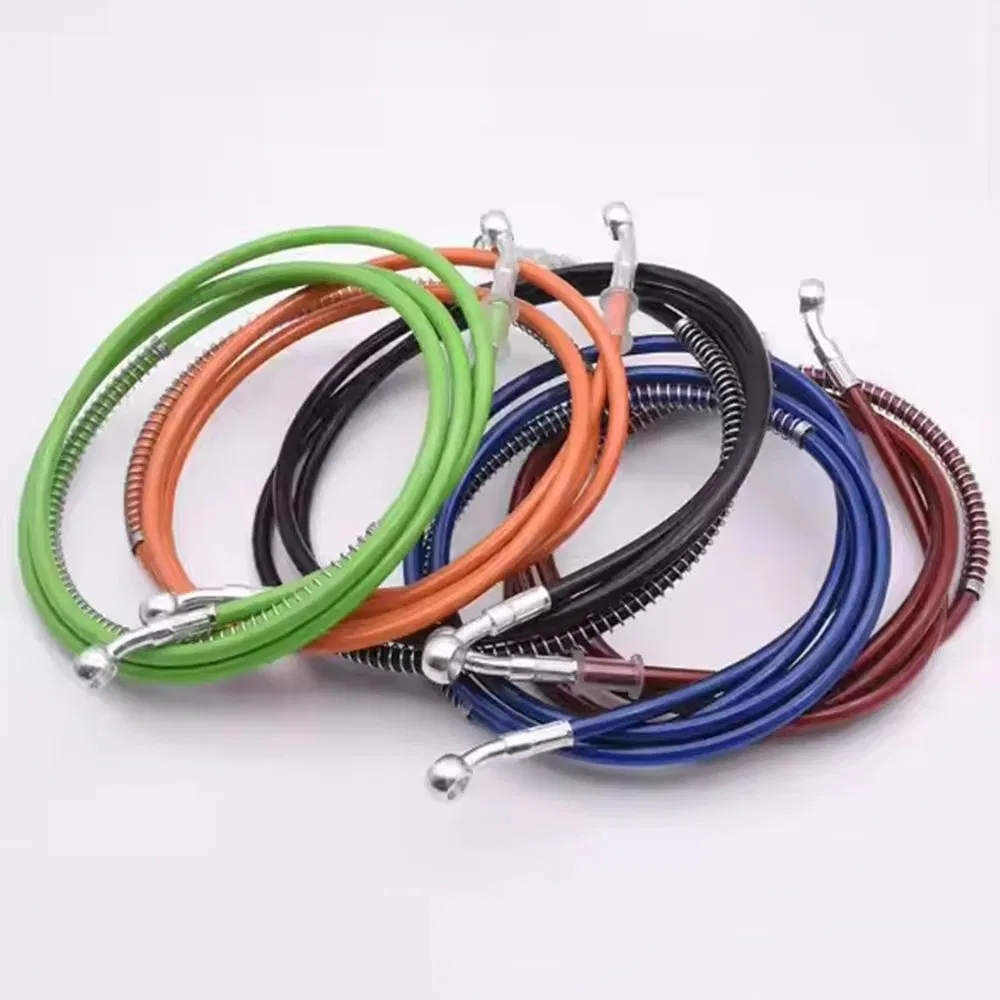

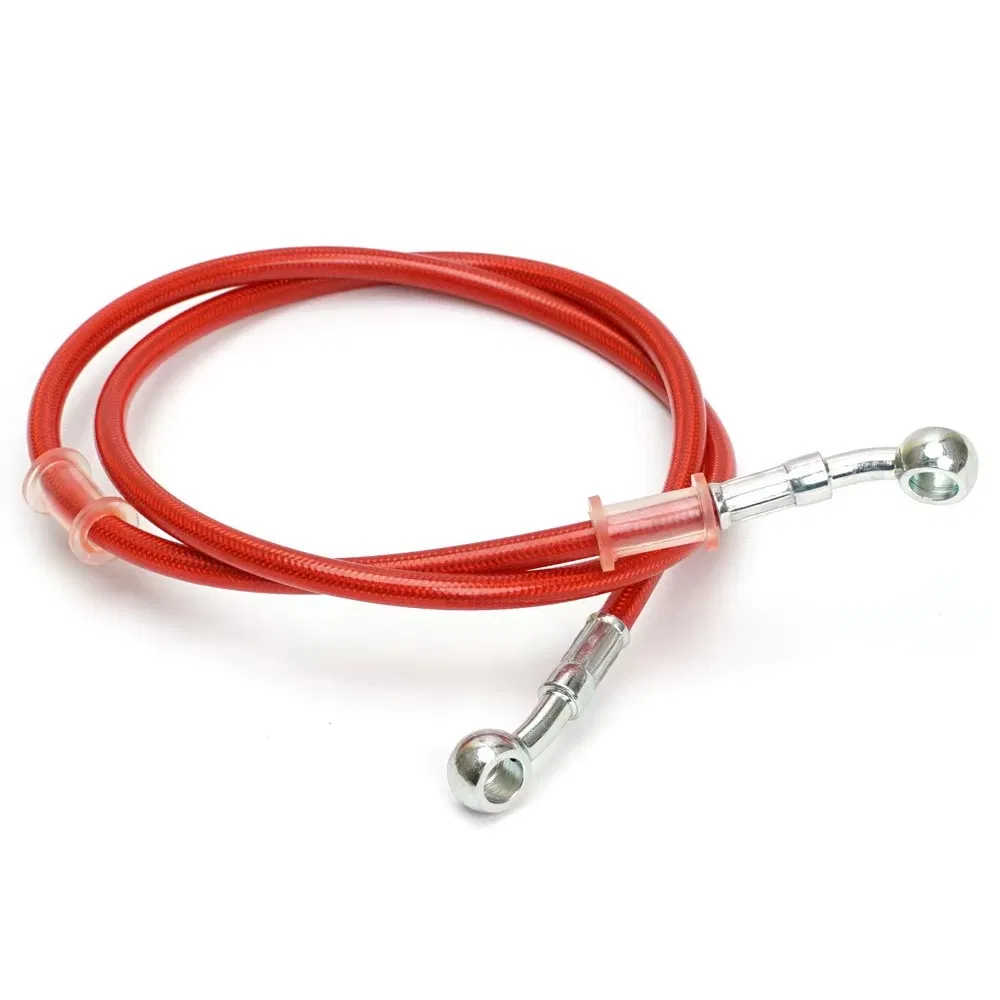

1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1 / 5
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly
1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly

1/8 An3 Hydraulic Automotive Chassis Driver Side Front Rear Stainless Steel Braided Extend Brake Lines Brake Tube Brake Pad Hose Assembly

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Type
Brake Hose
Material
Steel
Position
Front
Certification
ISO/TS16949, IATF-16949, ISO9001, DOT
Classification
Disc
Product Name
An3 Brake Hose Line Fitting
Test
100% Tested
OE No.
M10X1
Fit for
1/8' PTFE Hose
Work Temp.
More Than 260 Degree
Working Pressure
More Than 80MPa
Surface
Zinc Plating
Product Description

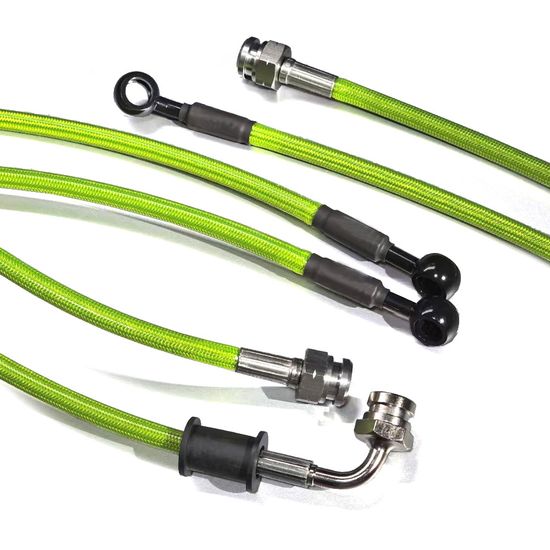

Video Cover

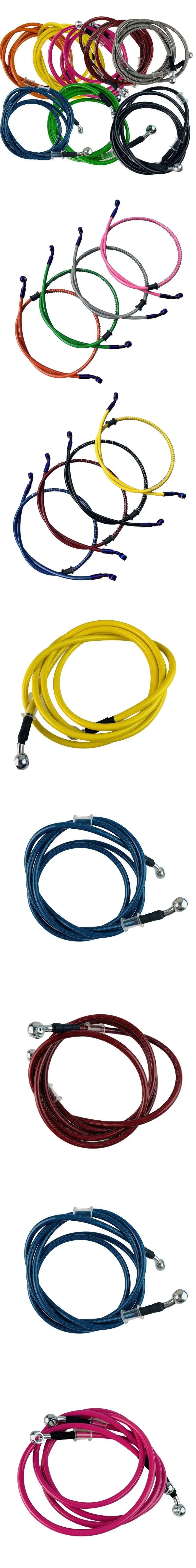

Brake Hose Assembly
◈
Standard: SAE J1401 / FMVSS 106 / GB 16897-2010
◈
Application: Various modified hydraulic braking systems for cars, motorcycles, beach cars, karts, and racing cars.
◈
Features: PTFE/Teflon hose offers superior corrosion, oil, wear, and high-temperature resistance (-70℃ to +260℃). Low expansion coefficient ensures high brake sensitivity.
Technical Specifications

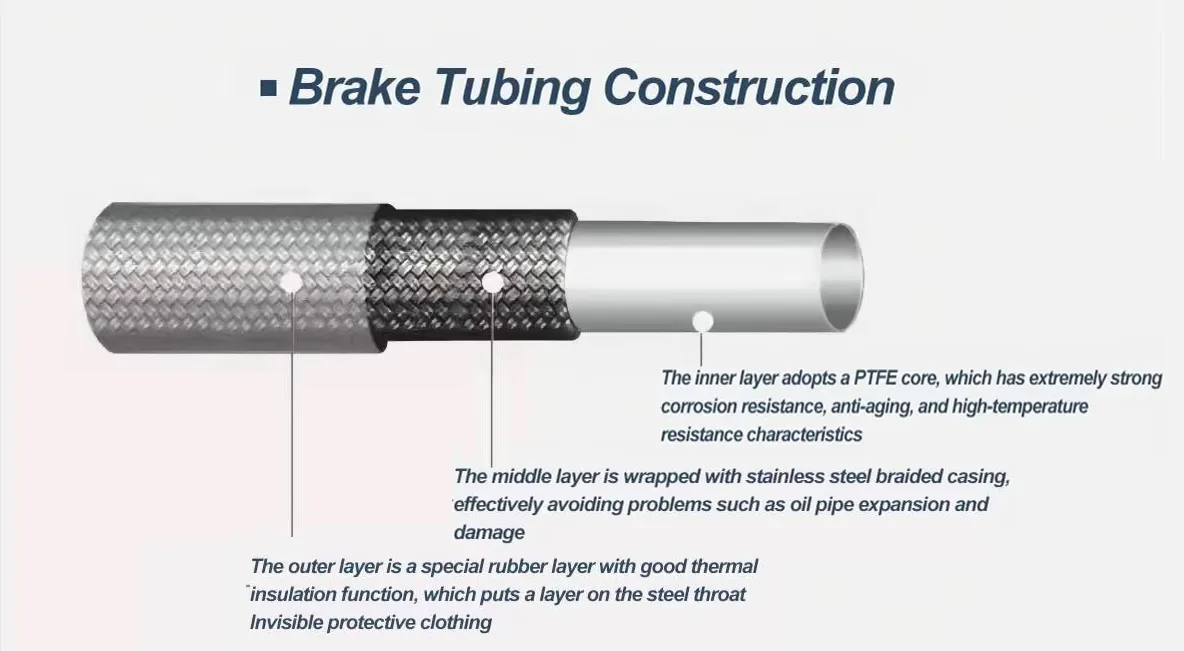

Specification Diagram
Hose Size Hose I.D. Hose O.D. Tubing OD Operating Pressure Min. Bend Radius
-20.079"0.20"1/8"3000psi0.6"
-30.138"0.25"3/16"3000psi1.5"
-40.197"0.30"1/4"3000psi2.0"
-60.320"0.43"3/8"2500psi4.0"
-80.420"0.54"1/2"2000psi5.3"
Certifications
Quality Certificates
Manufacturing Capability
  • ✔ Established in 1998 with extensive experience in hydraulic systems.
  • ✔ Certified IATF16949:2016 and ISO9001:2015 quality management systems.
  • ✔ Annual Capacity: 1 million brake hose assemblies and 2 million meters of hose.
  • ✔ Dedicated facilities for hose production, fitting manufacturing, and assembly.

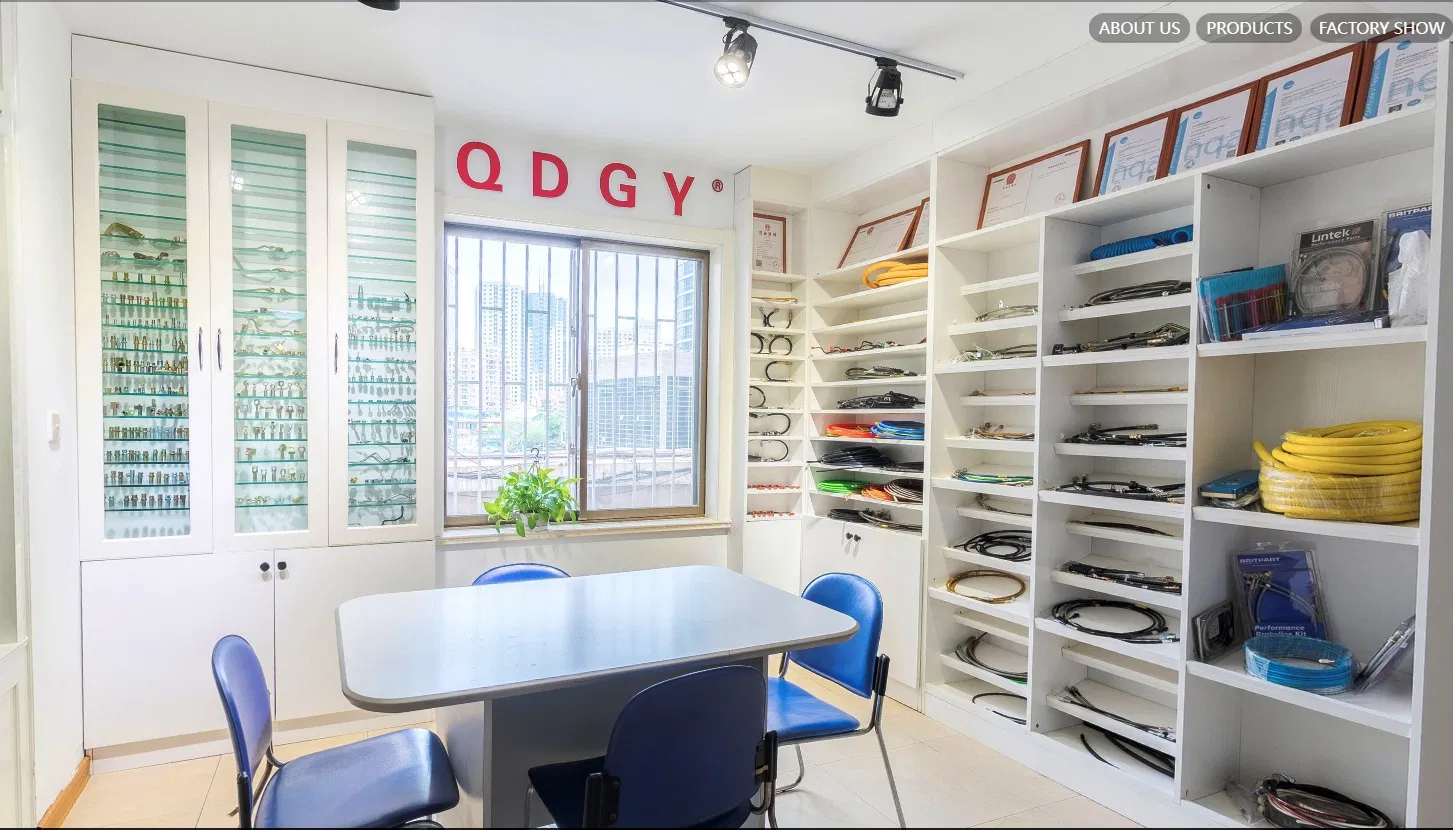

Factory View 1

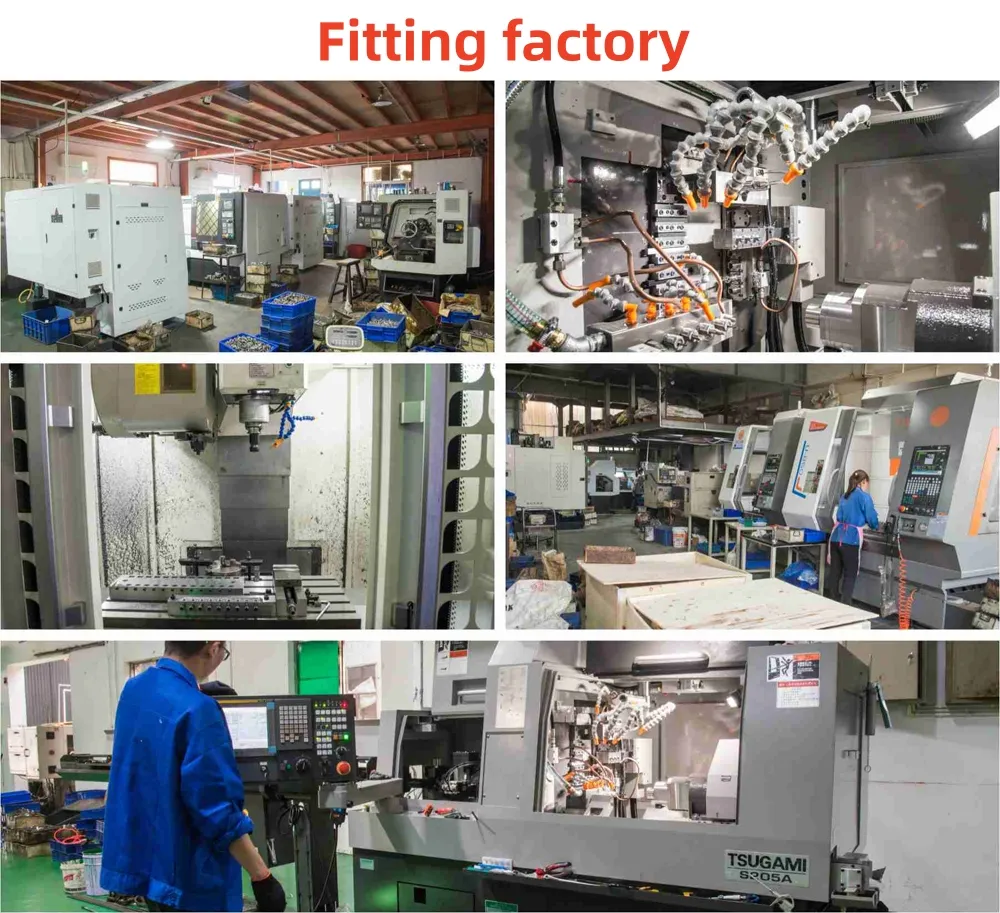

Factory View 2

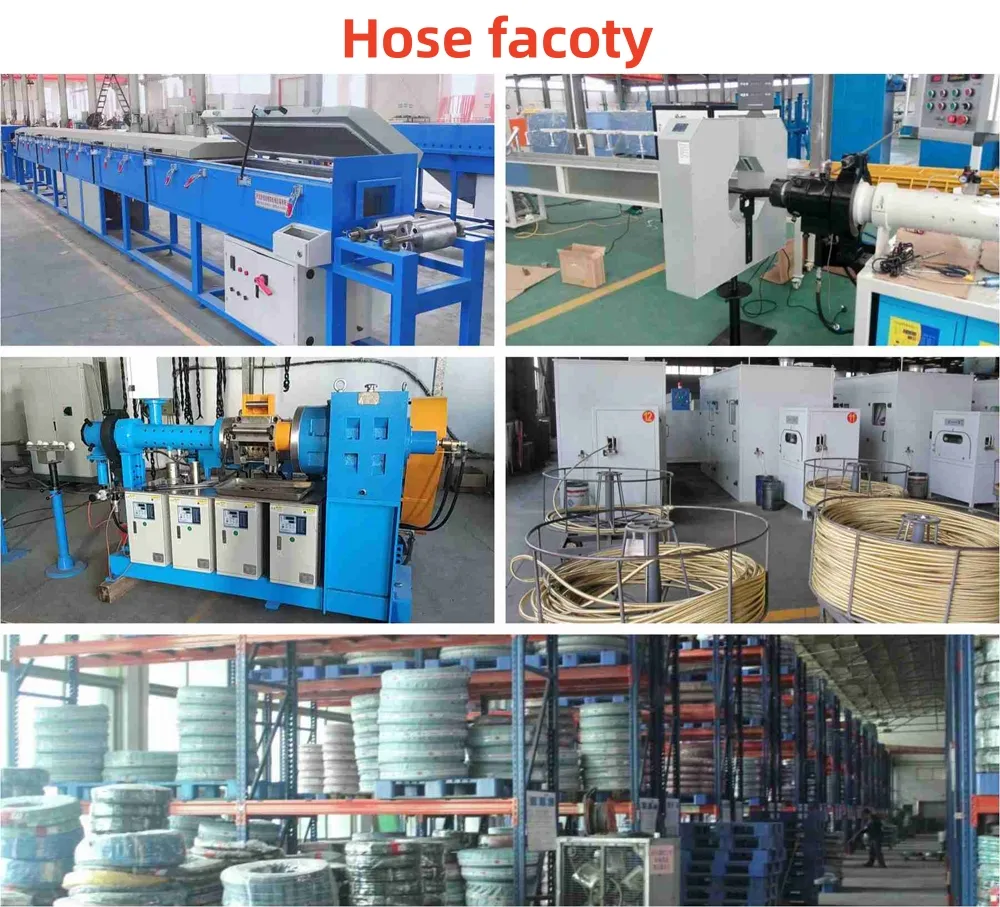

Factory View 3

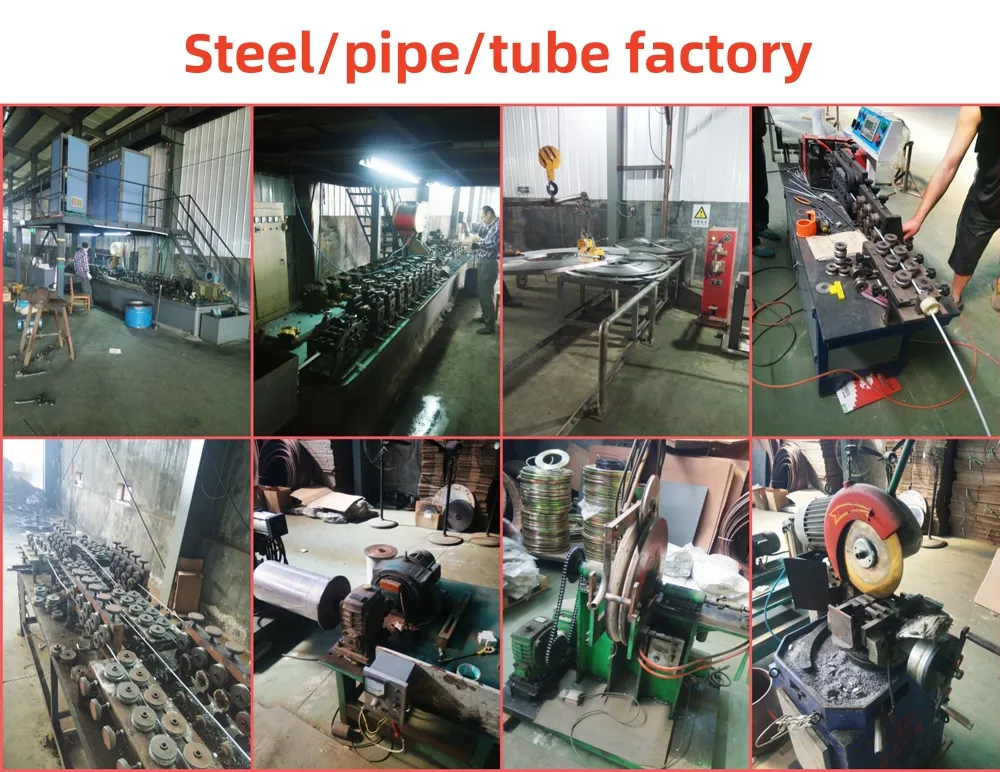

Factory View 4
Packing & Delivery

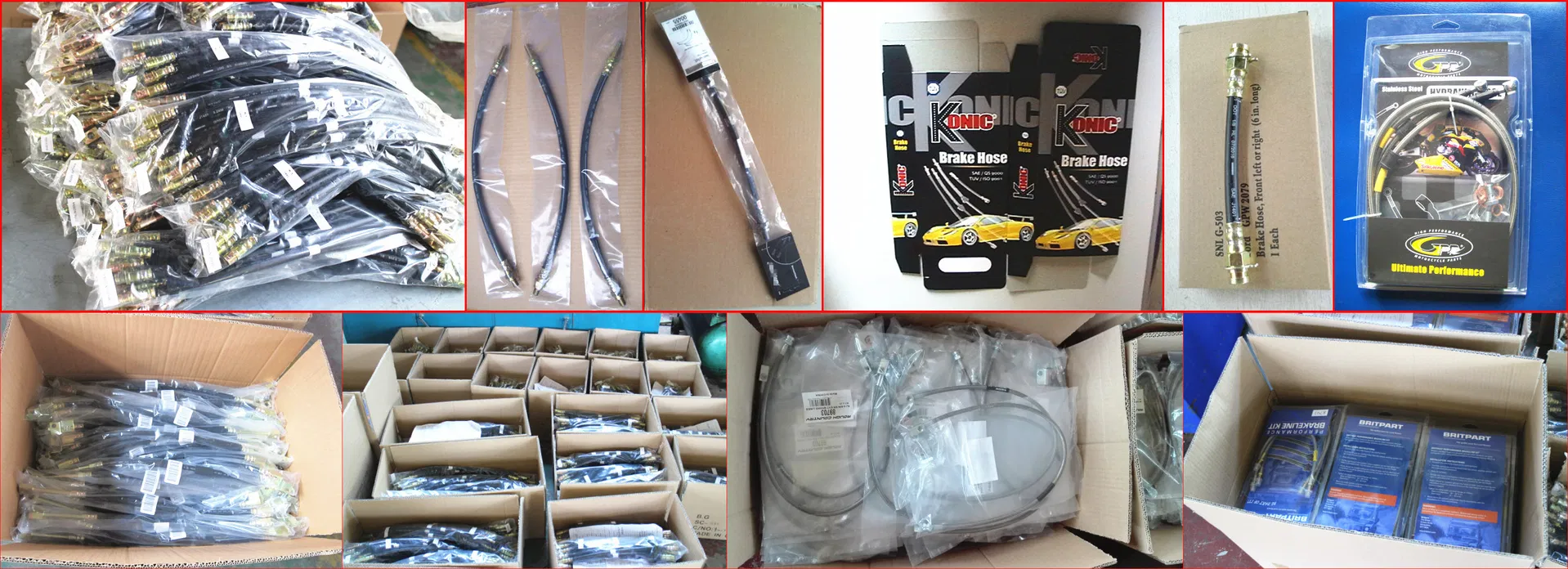

Packing Process

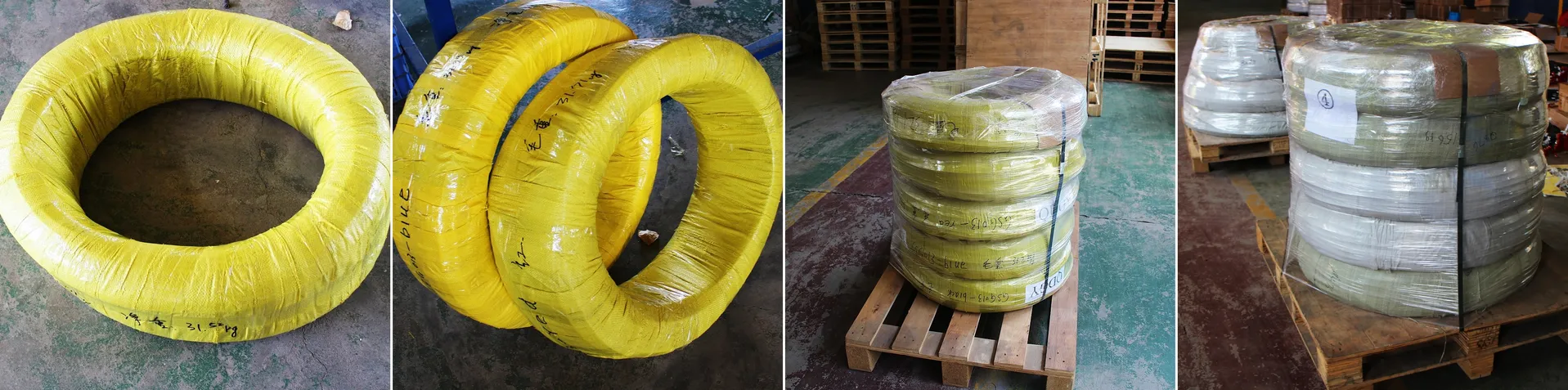

Roll Package

Roll Package Details: 200m per roll. Each roll diameter is 50cm x 50cm x 20cm, weighing approximately 20kg. Palletized shipping available (5 rolls per pallet, total weight ~130kg).

Warehouse Storage
After Sales Service
Quality Control
  • ★ Rigorous Quality Control at every production step
  • ★ 24/7 Support for immediate assistance
  • ★ Hassle-Free Replacement guaranteed
Frequently Asked Questions
1. What are your terms of packing?
We typically use plastic wrap or wrap products according to specific customer requirements to ensure safety during transit.
2. How about your delivery time?
Generally, it takes 30 to 60 days after receiving your advance payment. The specific time depends on the items and the quantity of your order.
3. Can you produce according to samples?
Yes, we can manufacture products based on your physical samples or technical drawings provided.
4. What is your sample policy?
We can supply samples if we have ready parts in stock, though the customer is responsible for the shipping costs.
5. Do you test all your goods before delivery?
Yes, we conduct 100% testing on all products before they are dispatched to ensure quality.
6. How do you maintain long-term business relationships?
We prioritize consistent quality and competitive pricing. We treat every customer with respect and sincerity, regardless of their origin.
