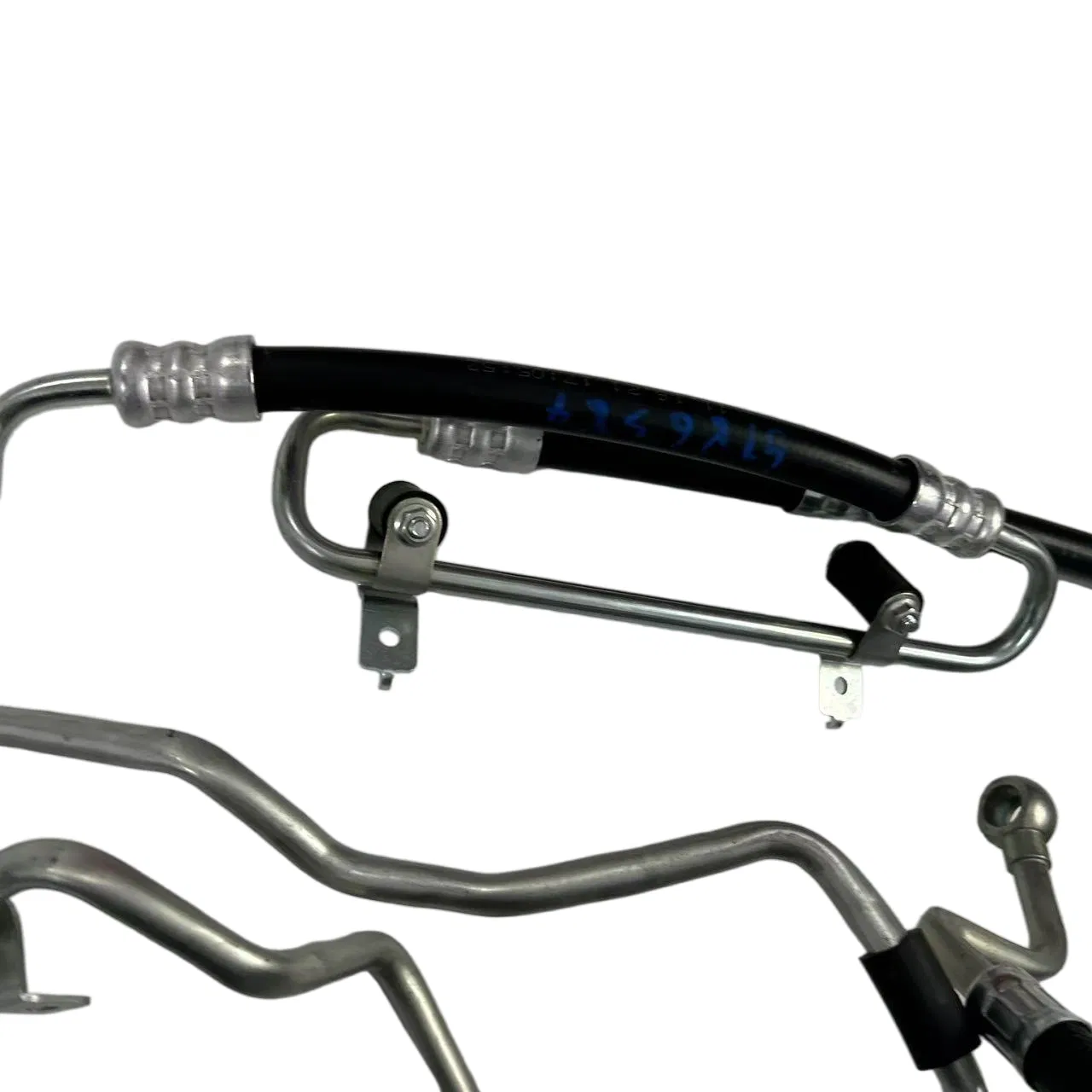

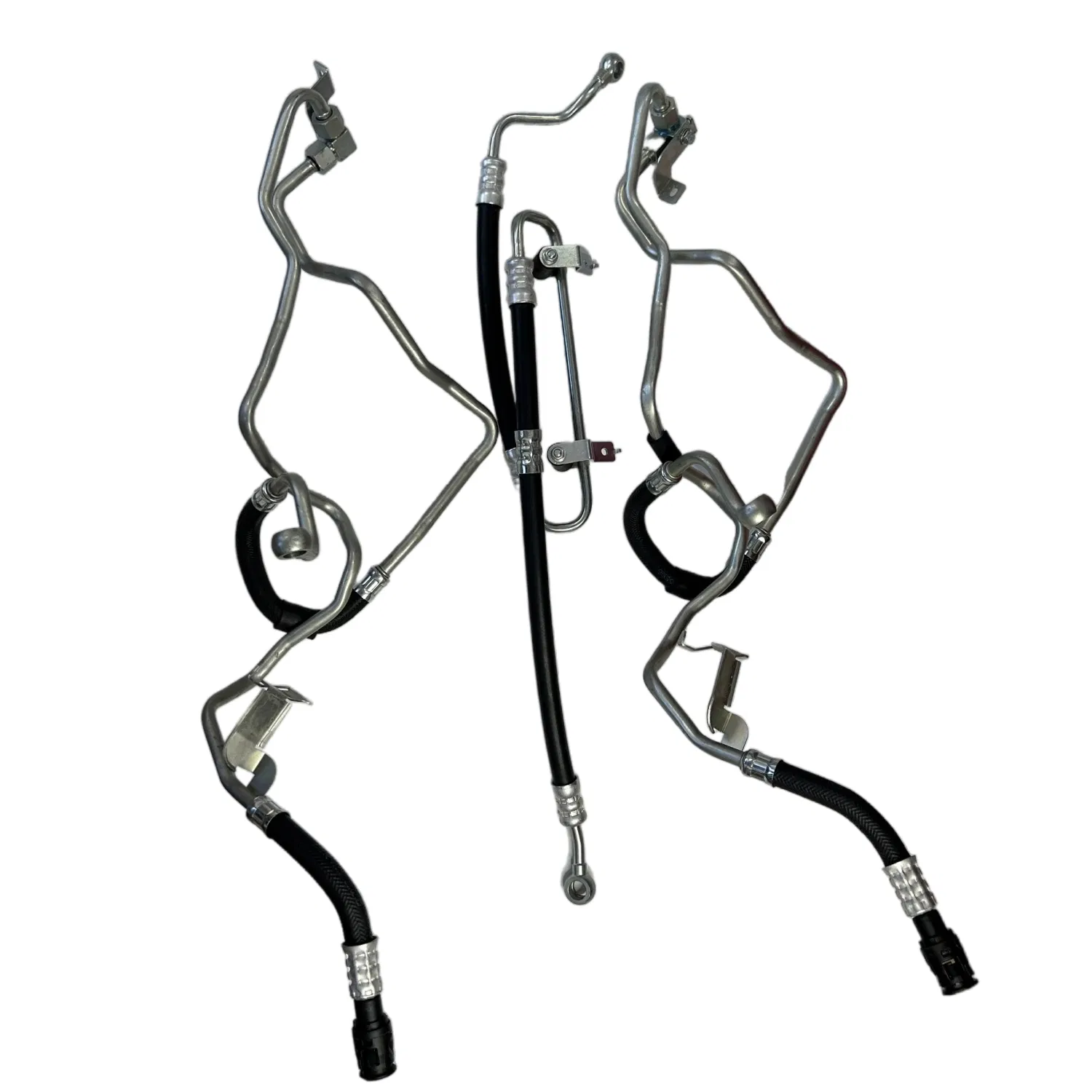

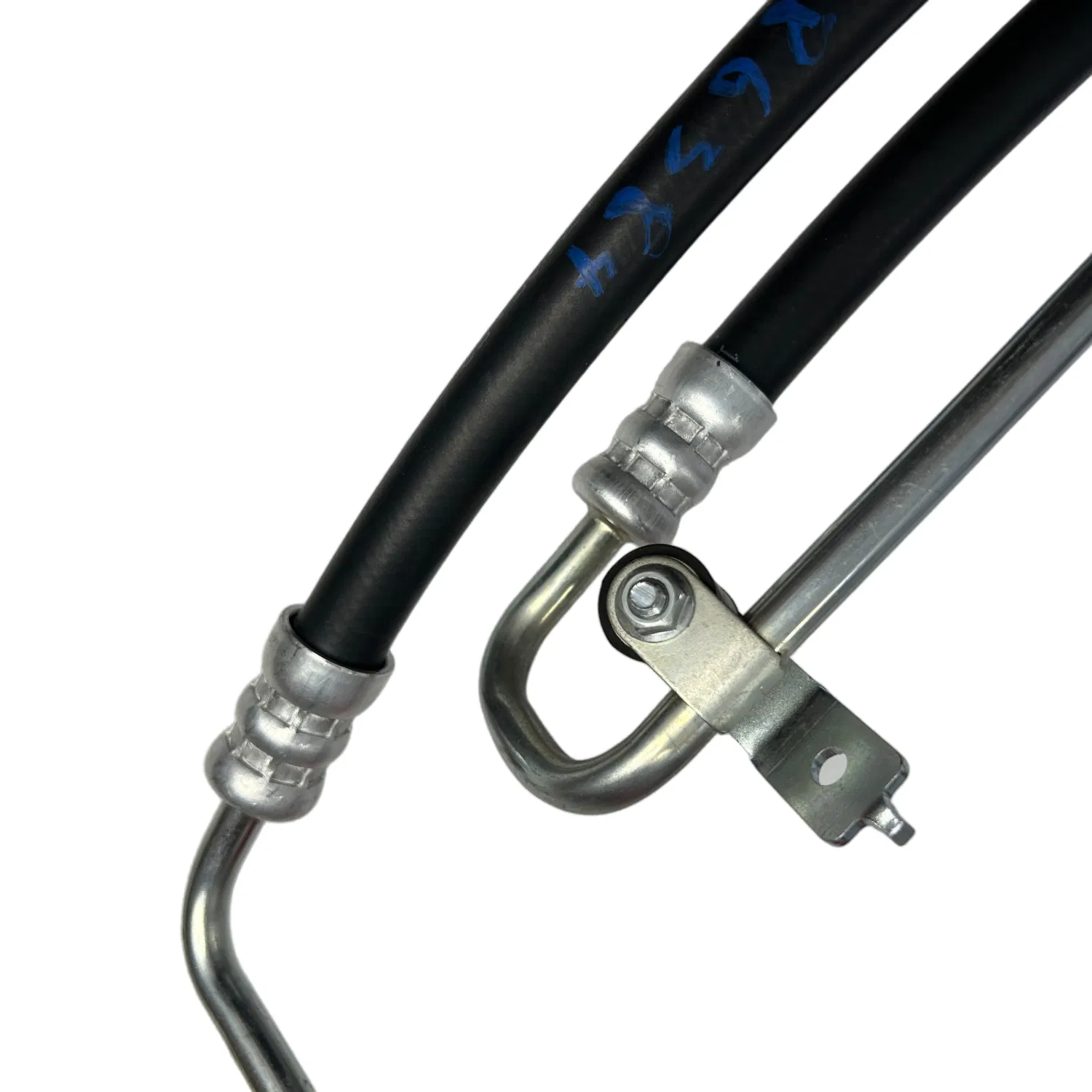

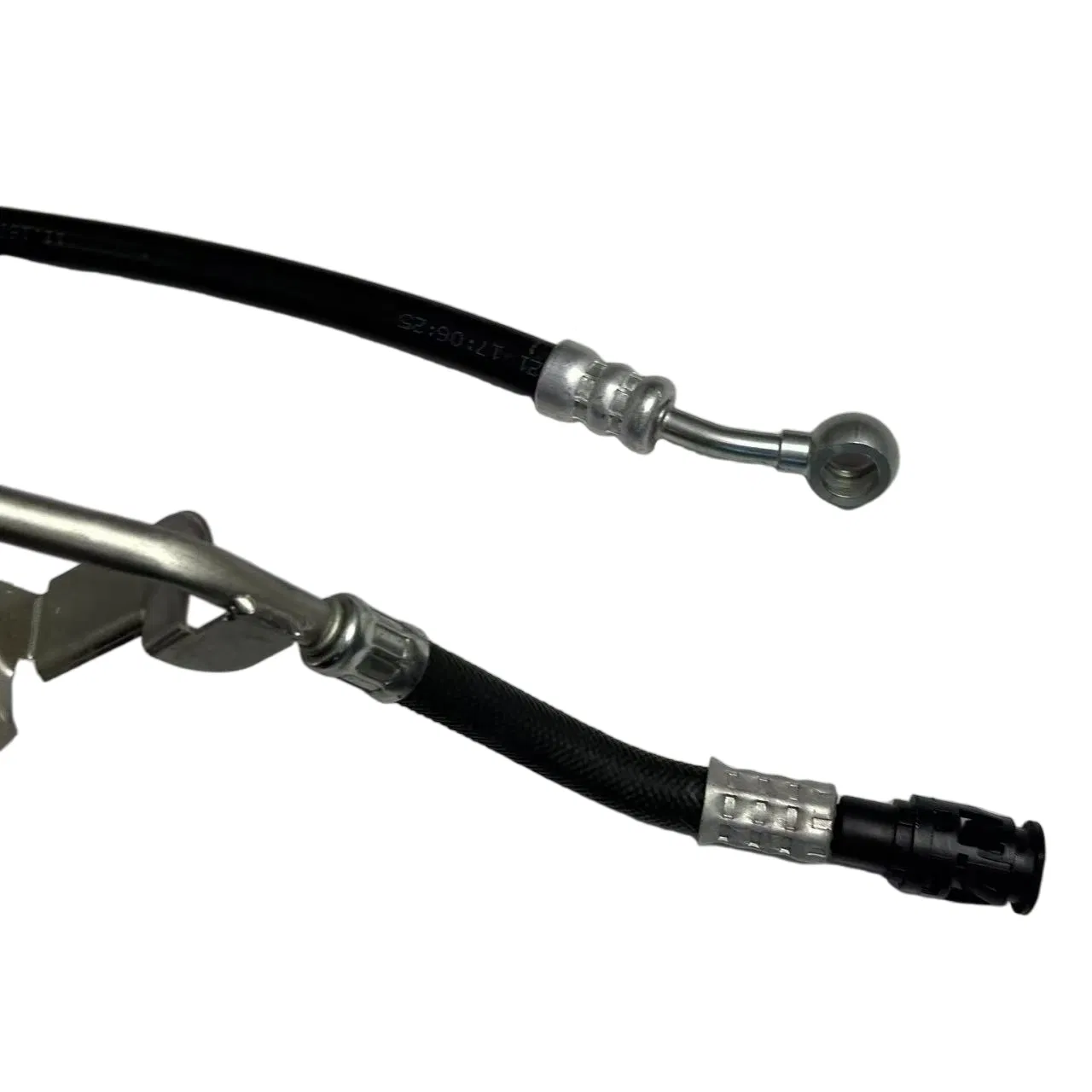

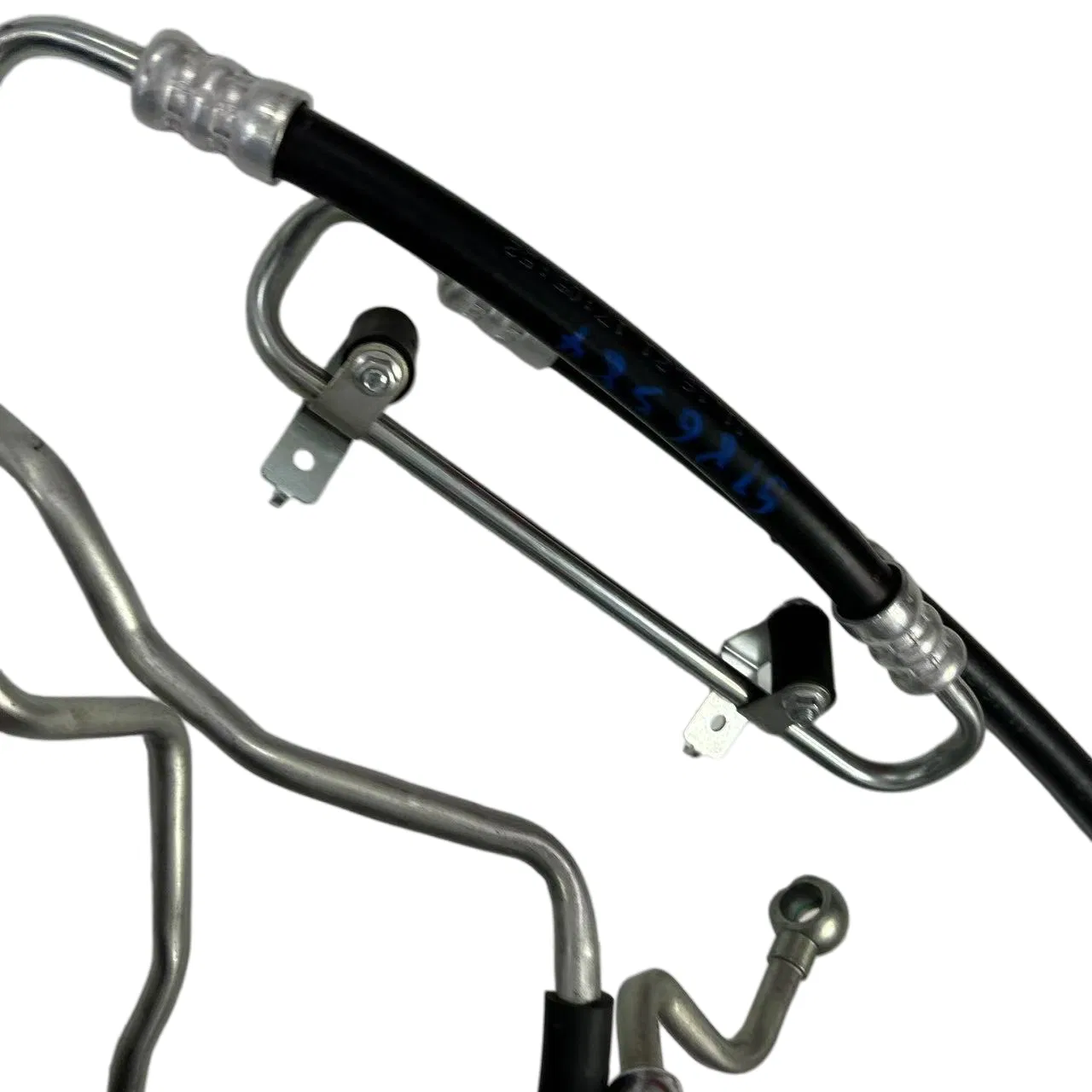

High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
1 / 5
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota
High Pressure Power Steering Hose SGS IATF 16949 for Toyota

High Pressure Power Steering Hose SGS IATF 16949 for Toyota

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Jinyuan 006
Type
Power Steering System
Material
Steel
Certification
ISO
Automatic
Automatic
Standard
Standard
Condition
New
Precision
Strong Sealing
Efficiency
Fast Transfer Rate
Performance
Leak Proof
Origin
China
HS Code
83079000
Product Description

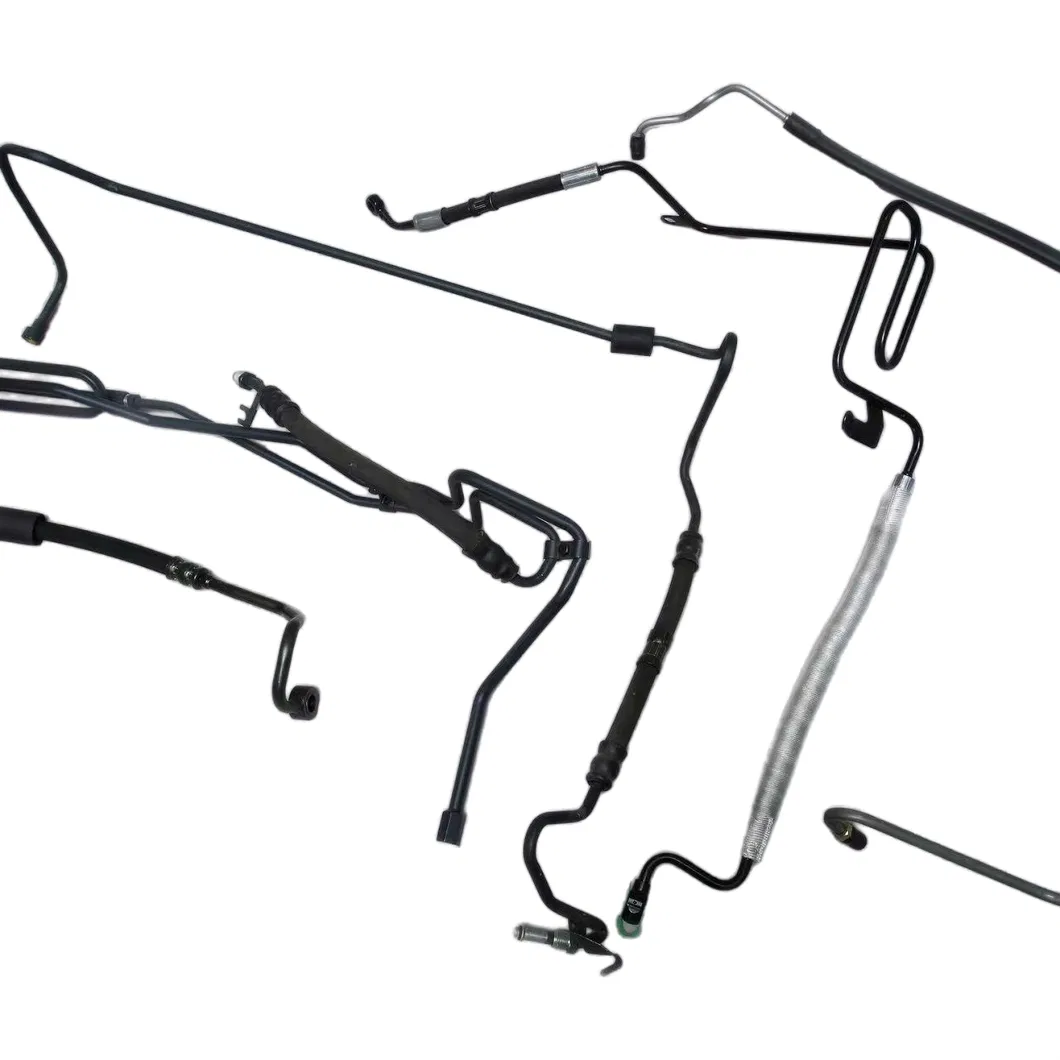

High Pressure Power Steering Hose
A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).

Multi-layer Construction:
  • Inner tube: Synthetic rubber or thermoplastic resistant to hydraulic fluid degradation.
  • Reinforcement: Braided steel wire, textile mesh, or spiral-wound fibers for pressure containment.
  • Outer cover: Weather-resistant EPDM or CR rubber to protect against abrasion and environmental damage.
⚙️ High-Pressure Supply

Handles peak system pressures from pump to gear.

🔄 Low-Pressure Return

Directs excess fluid back to the reservoir.

🛡️ ISO Certified

Complies with SAE J188 and ISO 11425 standards.

Parameter Name Description / Value Remark
Material StructureInner: NBR/HNBR; Reinforcement: Fiber/Wire; Cover: Anti-aging rubberChemical corrosion resistance
Inside Diameter (ID)8 mm, 10 mm, 12 mmSelect by vehicle type
Outside Diameter (OD)14 mm, 16 mm, 18 mmTolerance ± 0.5mm
Working Pressure10 MPa ~ 20 MPaPeak up to 30MPa
Burst Pressure≥60 MPaSafety factor ≥3x
Temperature Range-40°C ~ +120°CShort-time tolerance 135°C
Compatible FluidATF (Automatic transmission oil), PSF (Power steering oil)Must meet ISO 7308
Life Cycle≥5 million pulse testsSimulates 200,000 km
Power Steering Hose Detail 1
Power Steering Hose Detail 2
Power Steering Hose Detail 3
Manufacturing Process 1
Manufacturing Process 2

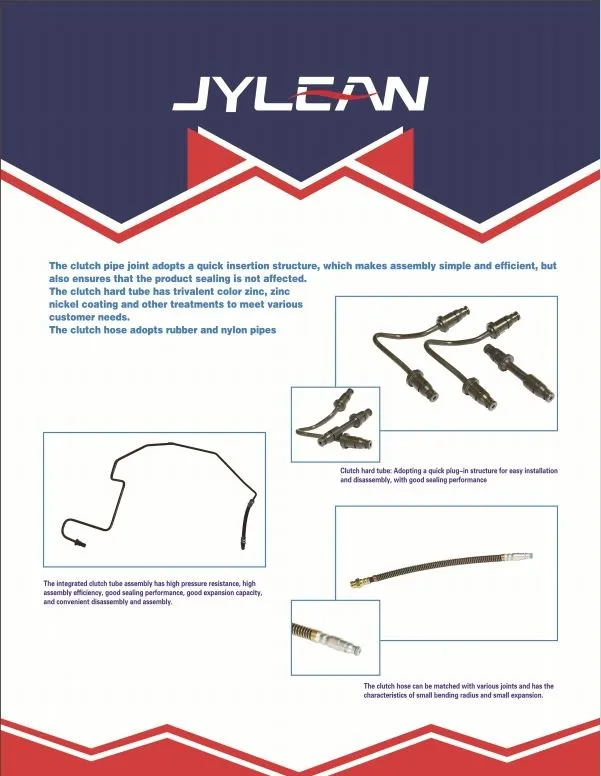

Quality Control 1
Quality Control 2
Testing 1

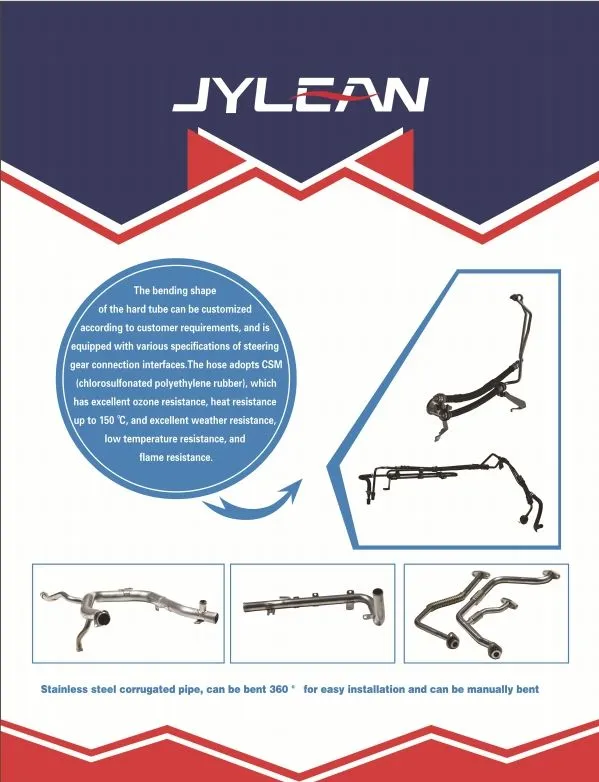

Testing 2
Certification 1
Certification 2
Frequently Asked Questions
What are the primary materials used in these hoses?
The inner layers are typically made of oil-resistant synthetic rubber like NBR or HNBR, reinforced with high-strength fiber or wire braided layers, and covered with wear-resistant polyurethane or rubber.
Can you produce hoses based on custom samples?
Yes, production can be customized according to specific samples or technical drawings provided by the customer.
What testing standards are performed before delivery?
All goods undergo 100% visual inspection and rigorous performance tests, including pulse pressure tests and leak proof checks, to ensure compliance with ISO and SAE standards.
What is the typical working temperature range?
The standard operating range is -40°C to +120°C, with short-term tolerance capability up to 135°C.
What types of hydraulic fluids are compatible?
These hoses are compatible with Automatic Transmission Fluid (ATF) and Power Steering Fluid (PSF) meeting Dexron or ISO 7308 standards.
What are your standard delivery terms?
Commonly used delivery terms include FOB, CIF, EXW, and CFR, with a general lead time of approximately 45 days depending on order volume.
