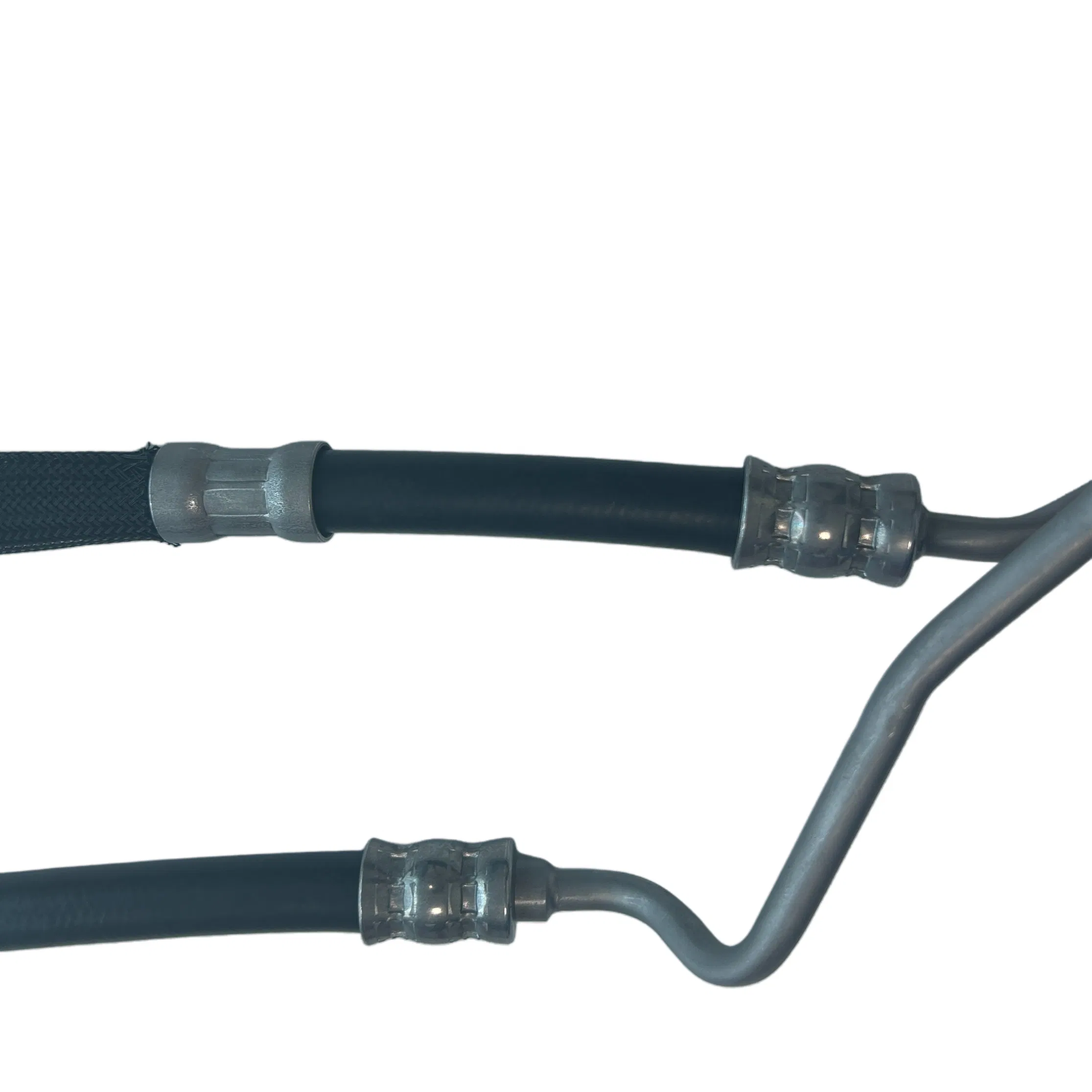

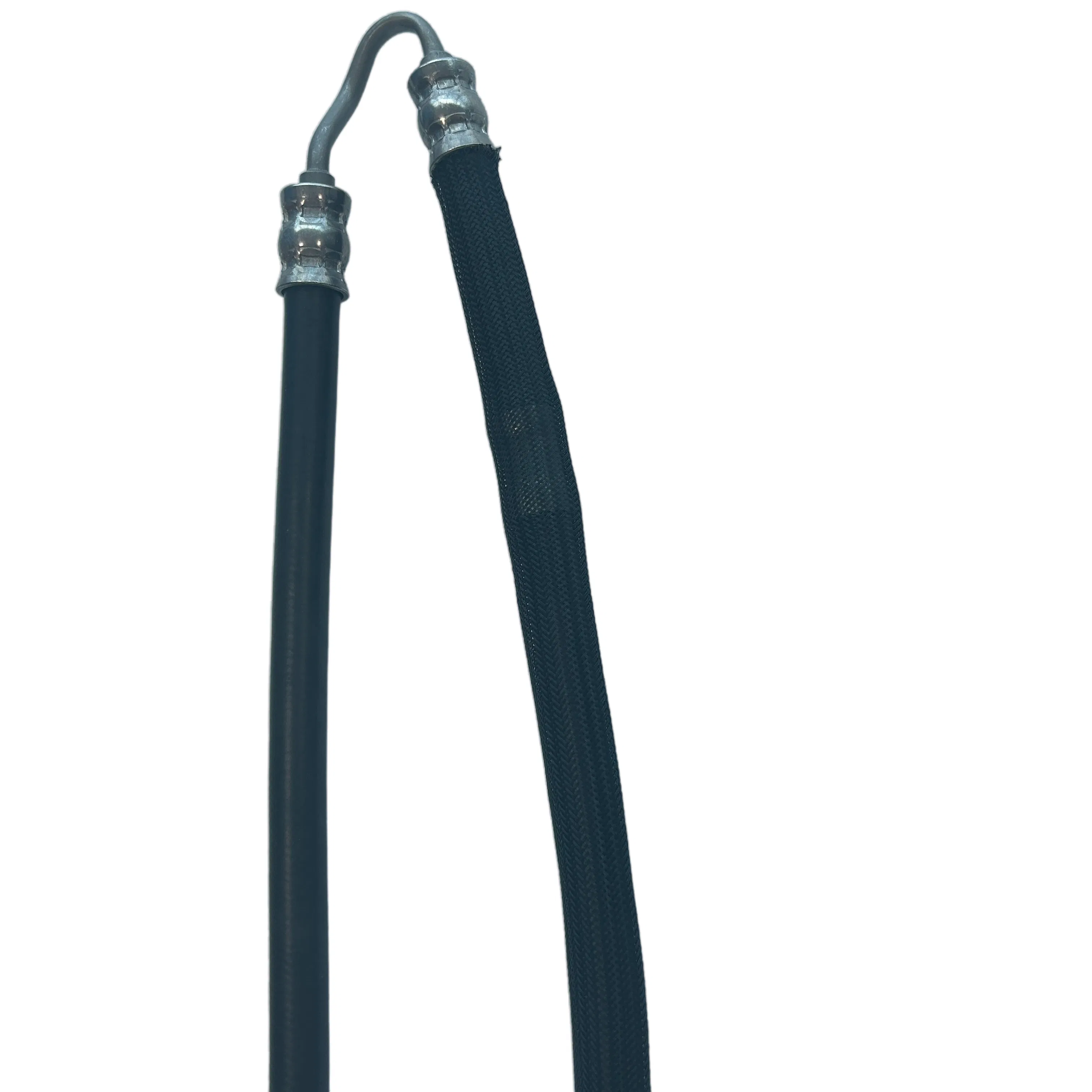

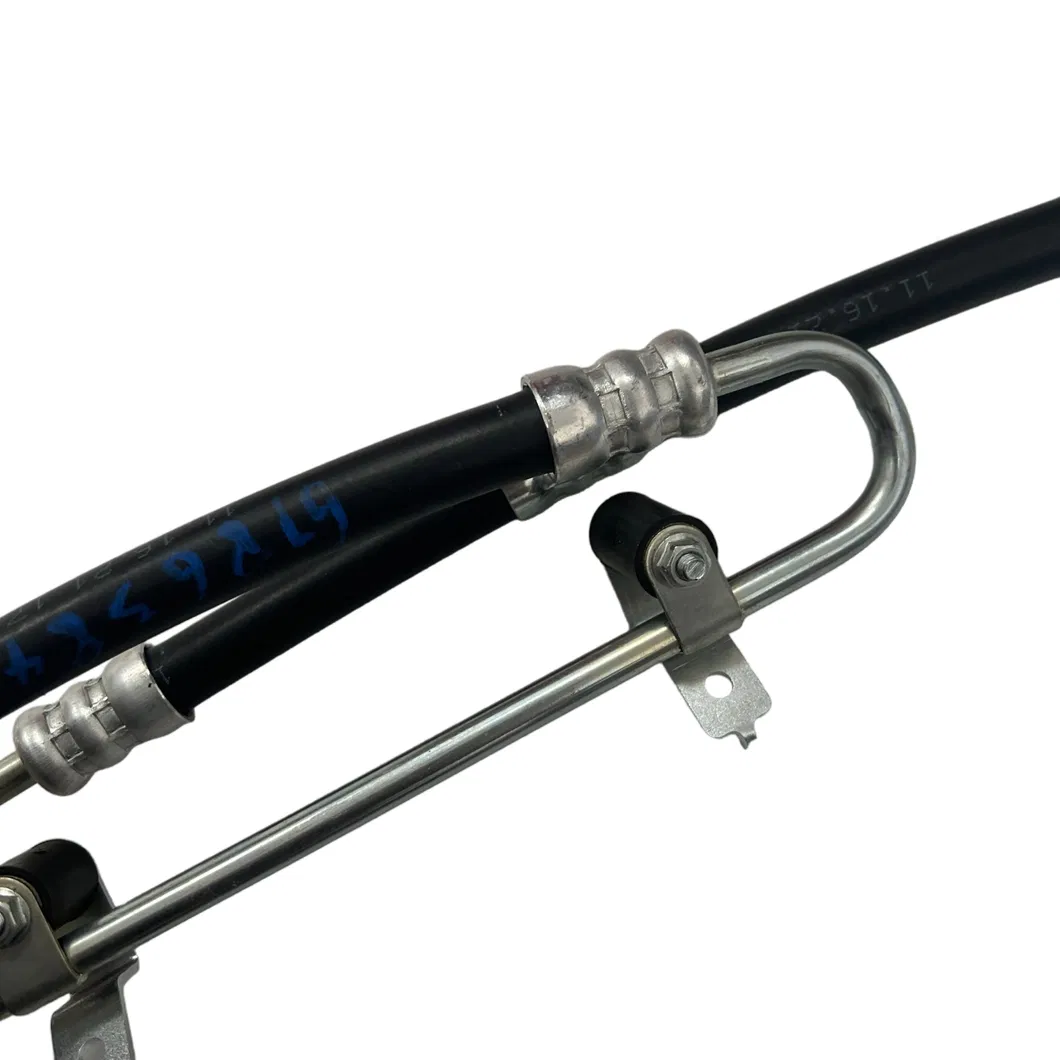

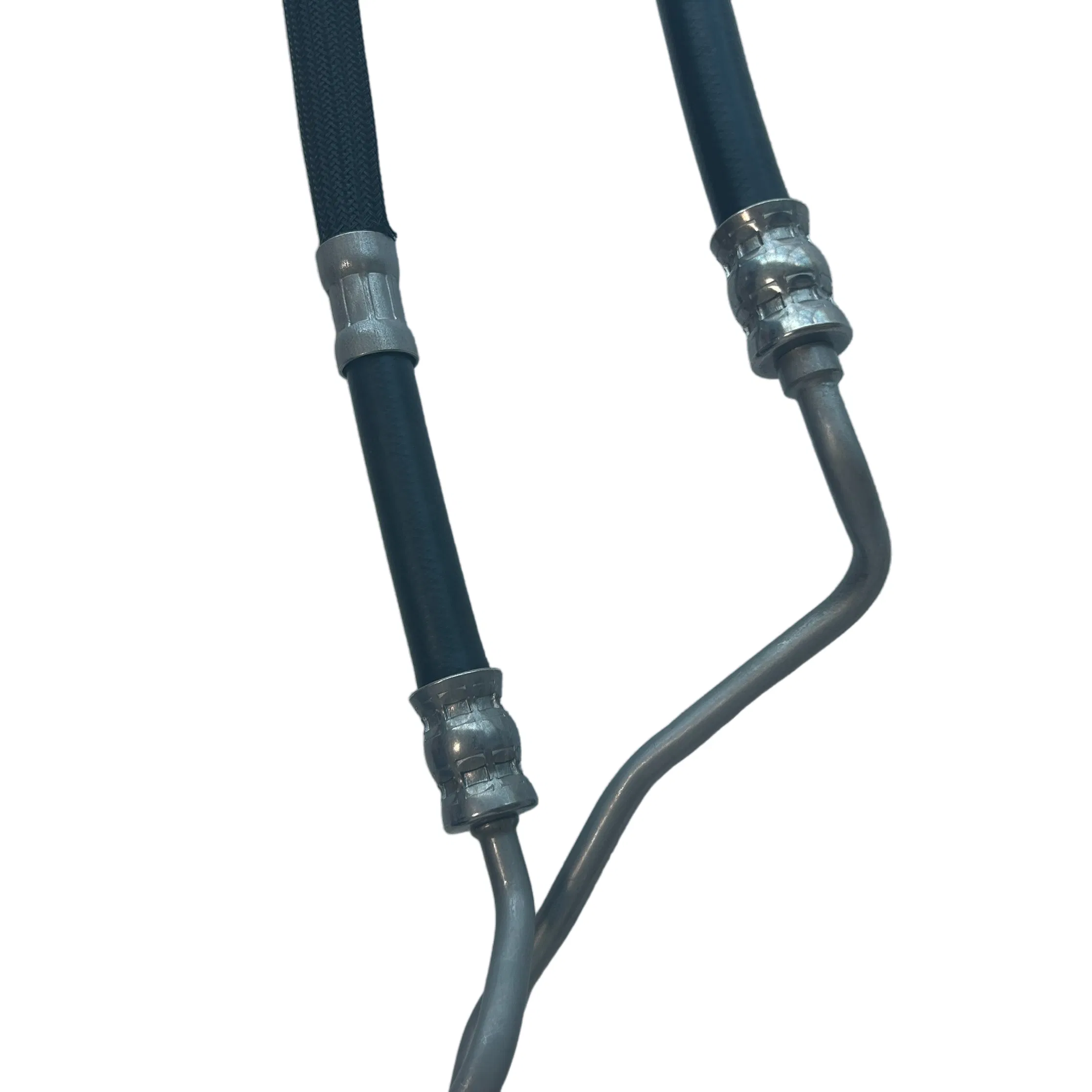

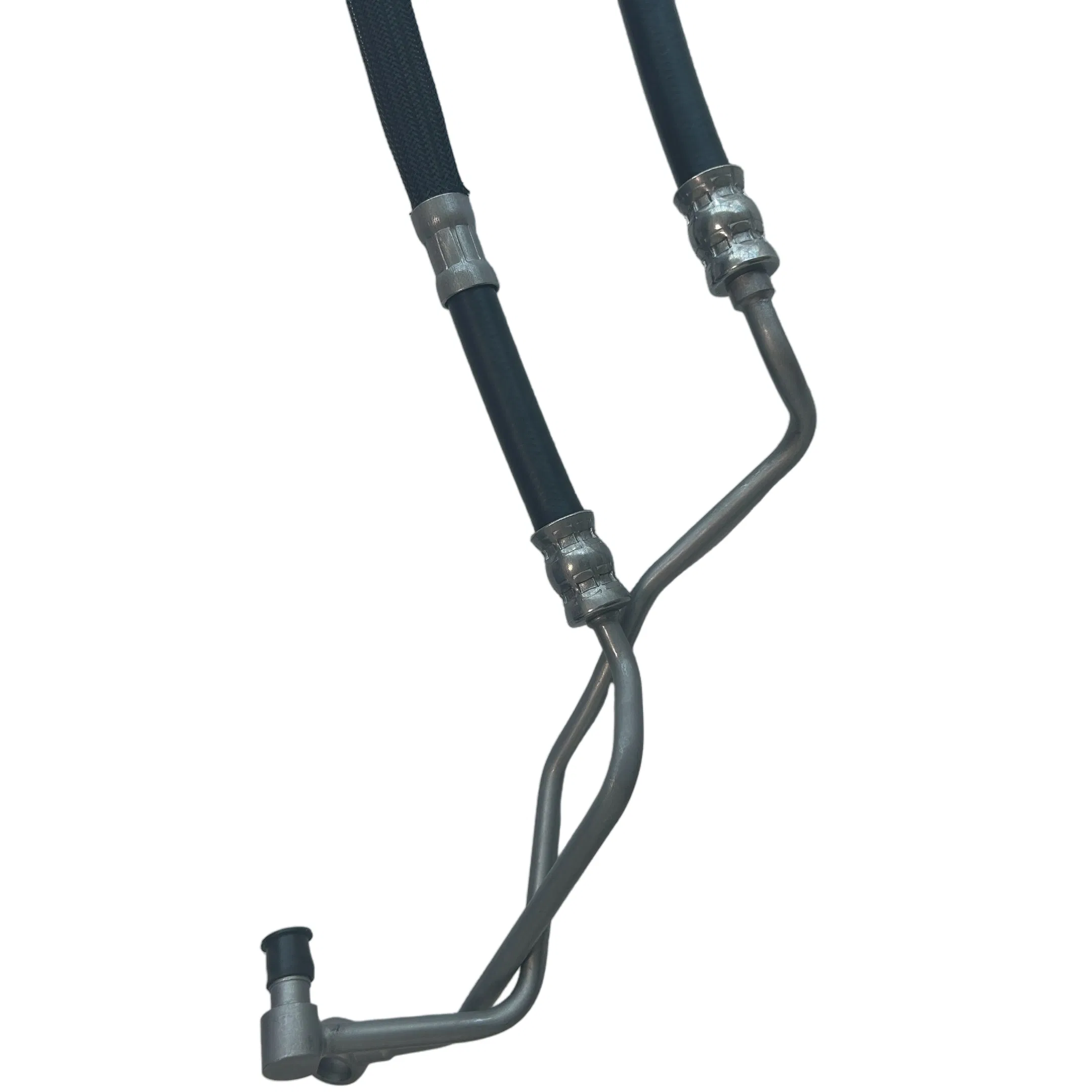

A power steering hose is a critical component in vehicle hydraulic steering systems, designed to transport pressurized hydraulic fluid between the power steering pump, steering gear/rack, and reservoir. These flexible yet durable hoses withstand continuous exposure to high pressures (typically 150-1,500 PSI) and extreme temperature fluctuations (-40°F to +300°F).
Constructed with multiple layers:
- Synthetic rubber or thermoplastic inner tube resistant to hydraulic fluid degradation.
- Reinforcement layers (braided steel wire, textile mesh, or spiral-wound fibers).
- Weather-resistant outer cover (EPDM or CR rubber) to protect against abrasion and ozone.
| Parameter Name | Description/Value | Parameter Name | Description/Value |
| Material structure | Inner layer: oil resistant synthetic rubber; Reinforcement: High strength fiber/wire; Cover: anti-aging rubber | Length | 300 mm ~ 1500 mm (customizable) |
| Inside diameter (ID) | 8 mm, 10 mm, 12 mm | Min bending radius | 50 mm ~ 100 mm |
| Working pressure | 10 MPa ~ 20 MPa | Compatible fluid | ATF (Automatic transmission oil), PSF |
| Burst pressure | ≥60 MPa | Certification | ISO 11425, SAE J188, OEM specifications |
| Temperature range | -40°C ~ +120°C | Life cycle | ≥5 million pulse tests |
